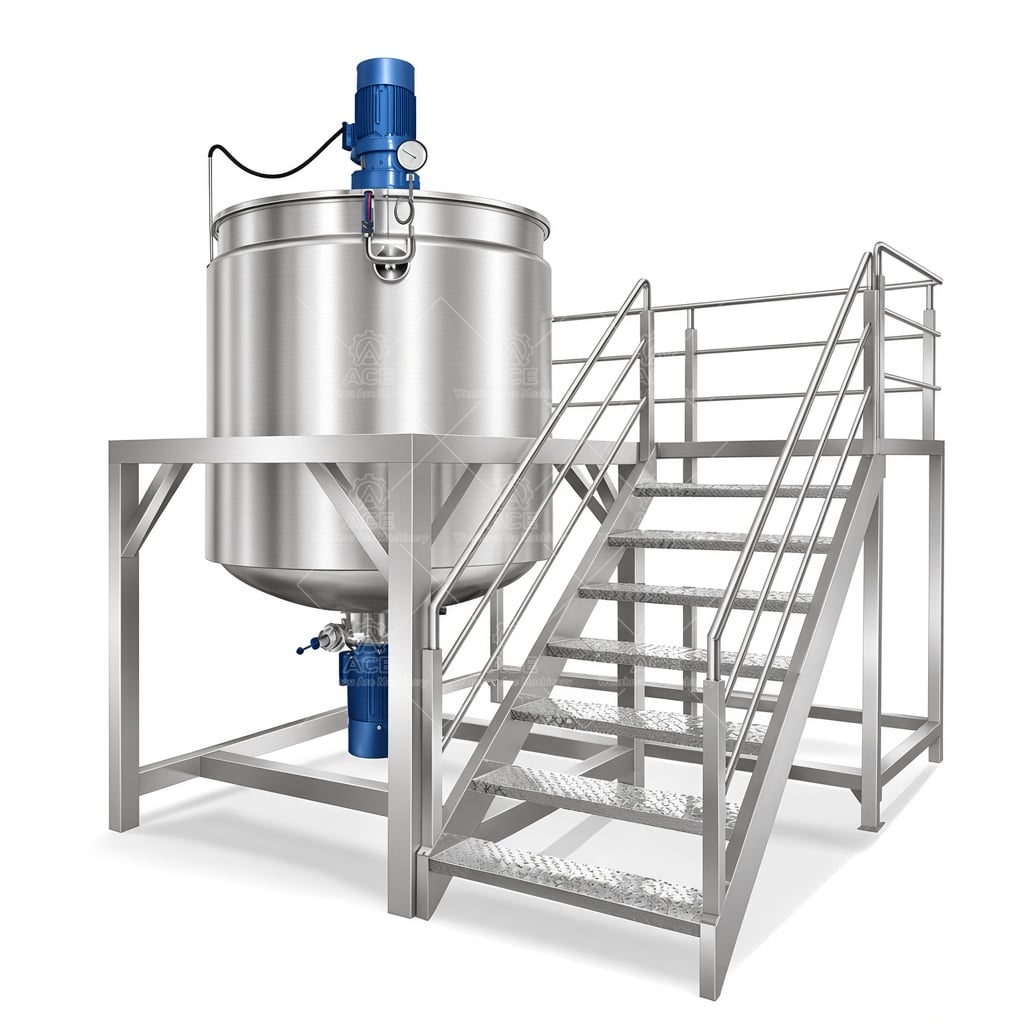

Vacuum Emulsifying Mixer for Cosmetic Cream Lotion and Ointment Production - Image 1

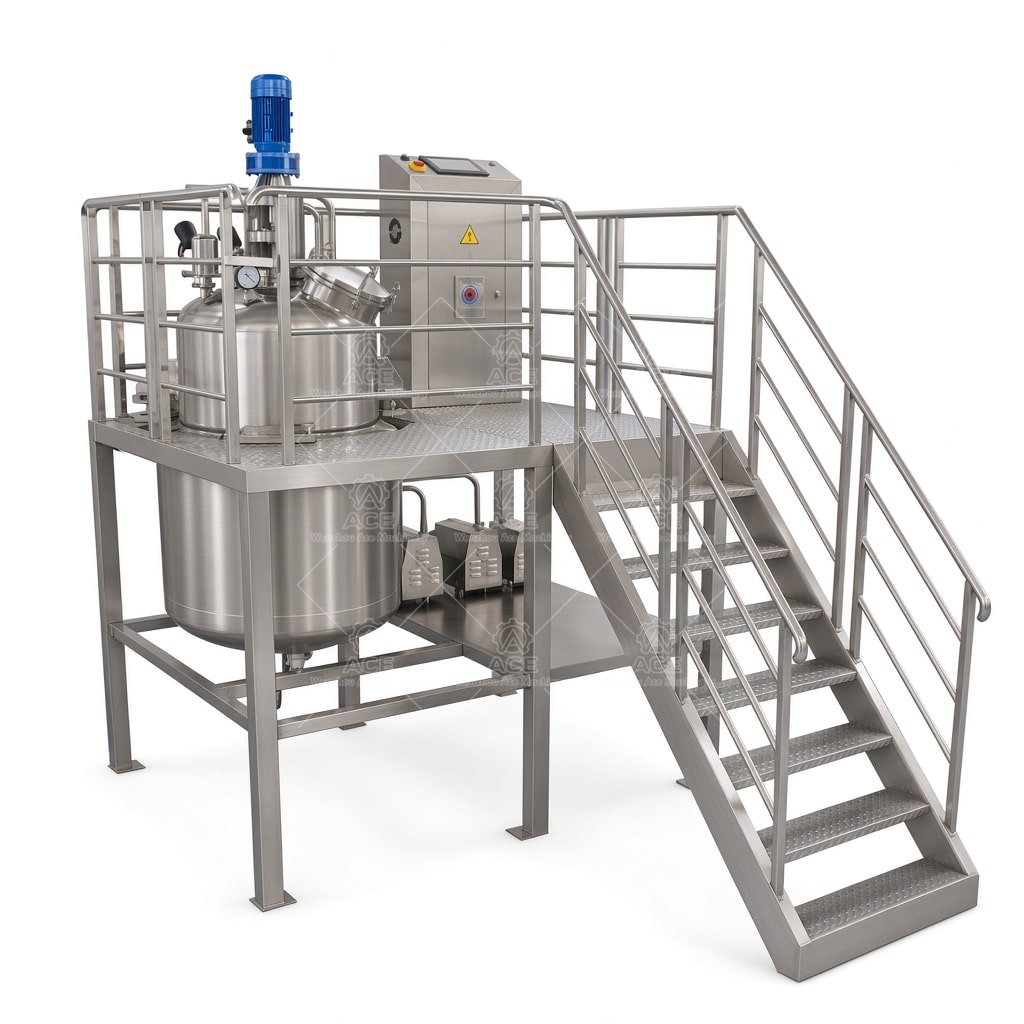

Vacuum Emulsifying Mixer for Cosmetic Cream Lotion and Ointment Production - Image 2

Click to enlarge

Vacuum Emulsifying Mixer for Cosmetic Cream Lotion and Ointment Production

Vacuum emulsifying equipment for cosmetic creams, lotions, and ointments can be configured around batch size, viscosity, shear requirements, heating and cooling needs, and filling-line connections. Vessel materials, agitator and homogenizer selection, seals, vacuum operation, and cleanability should be reviewed against the formulation and cleaning process. Share process details and utility conditions to support an appropriate production-line recommendation.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $7,747.25 through $8,810.17

Ask For A Quotation

Guaranteed Safe Checkout

Vacuum Emulsifying Production Line for Creams and Ointments

Cosmetic creams, lotions, and ointments can trap air during mixing, separate if the oil and water phases are not combined effectively, or become difficult to transfer as viscosity rises. We configure vacuum emulsifying equipment around the batch size, formulation, heating and cooling needs, and downstream filling process. A production line may include phase preparation vessels, a main mixing vessel, vacuum and discharge systems, and transfer connections; the actual arrangement depends on the process.

In the main vessel, an agitator moves the batch while a high-shear homogenizer reduces and disperses droplets. Scrapers can help keep viscous material moving near heated vessel walls, where stagnant product may otherwise overheat. Impeller type, homogenizer power, rotation speed, and drive arrangement need to match the product’s viscosity and shear sensitivity. A thick ointment and a pourable lotion do not necessarily call for the same mixing sequence or drive configuration.

Construction and process options

Product-contact parts are commonly specified in 304 or 316L stainless steel according to formulation chemistry, cleaning agents, and hygiene requirements. Welds, internal corners, and vessel geometry should support cleanability; the required internal finish should be agreed upon with the manufacturer rather than assumed from a material grade. Seal materials also need to be checked against product ingredients, process temperature, and cleaning conditions.

Heating and cooling may use a jacket or another vessel-specific arrangement. Electric, steam, or hot-water heating can be evaluated based on available utilities, temperature range, batch size, and heat-transfer needs. Temperature sensors and controls should be selected for the required process repeatability. Vacuum level, seal design, and discharge method also depend on the formulation and production setup.

Configuration details

Item	How it is specified
Working capacity	Based on batch size, fill range, and headspace needs
Agitation and homogenizing	Selected for viscosity, shear, and dispersion requirements
Vessel material and finish	Specified for product contact, cleaning, and hygiene criteria
Heating, cooling, and vacuum	Designed around process temperatures, utilities, and deaeration needs
Controls and discharge	Matched to operating sequence, transfer route, and filling equipment

Applications and purchasing questions

Typical applications include facial creams, body lotions, topical ointments, and other viscous emulsions. A practical sizing discussion should include the smallest and largest batch, ingredient addition order, target viscosity, operating temperatures, cleaning method, and required batch time.

Frequently asked questions

Can one machine handle both lotion and ointment?
Possibly, but viscosity range, agitator design, discharge method, and cleaning changeover must be reviewed against both recipes.

What should we send for a quotation?
Provide batch volumes, sample formulations or ingredient properties, process steps, utility availability, cleaning requirements, and site constraints. These details let our engineers recommend a suitable vessel and drive configuration without assuming unverified production conditions.
