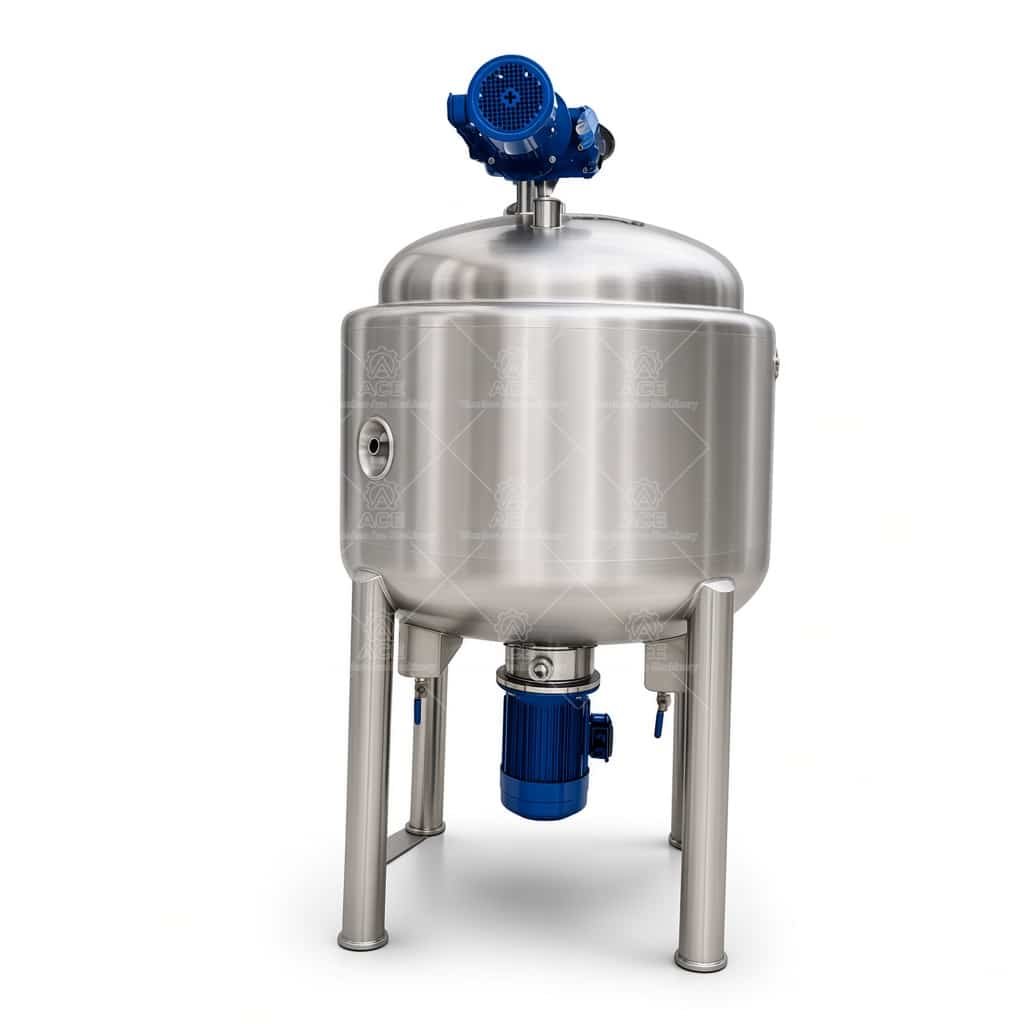

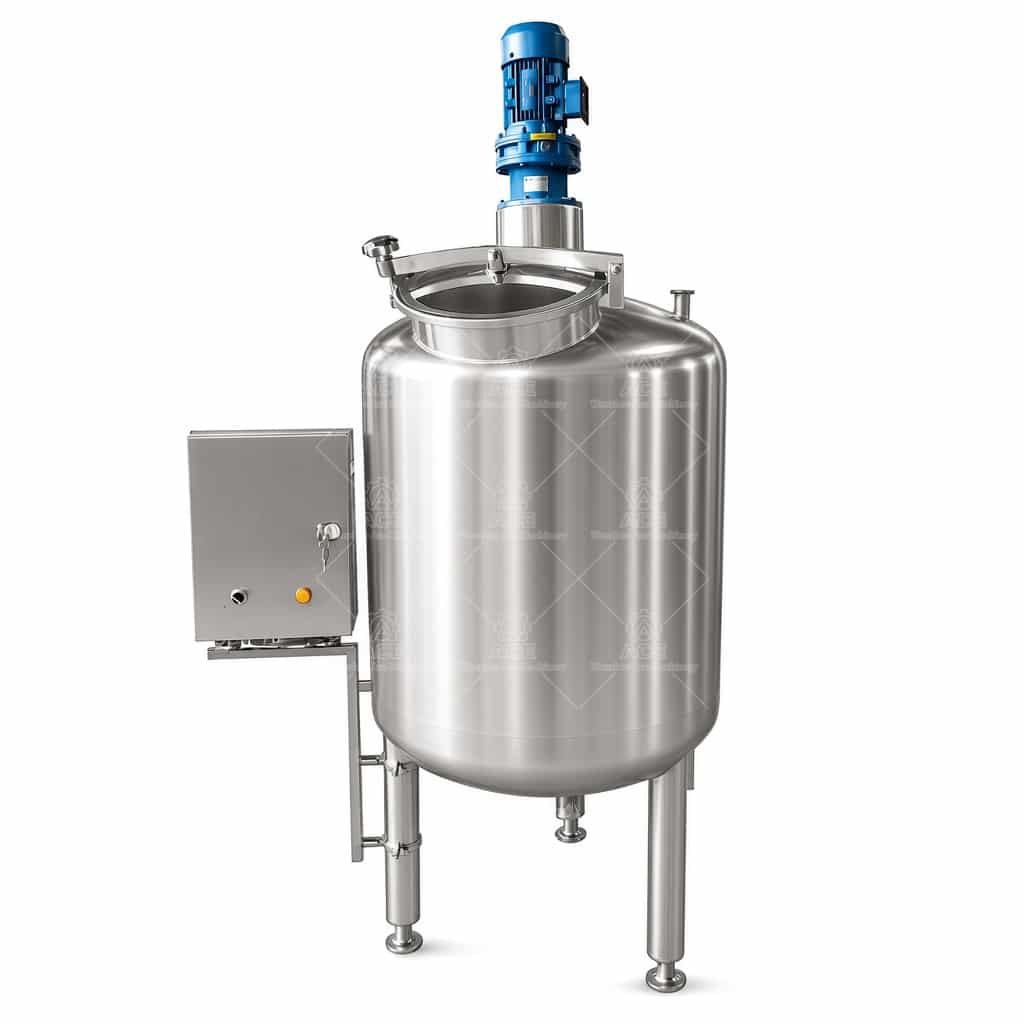

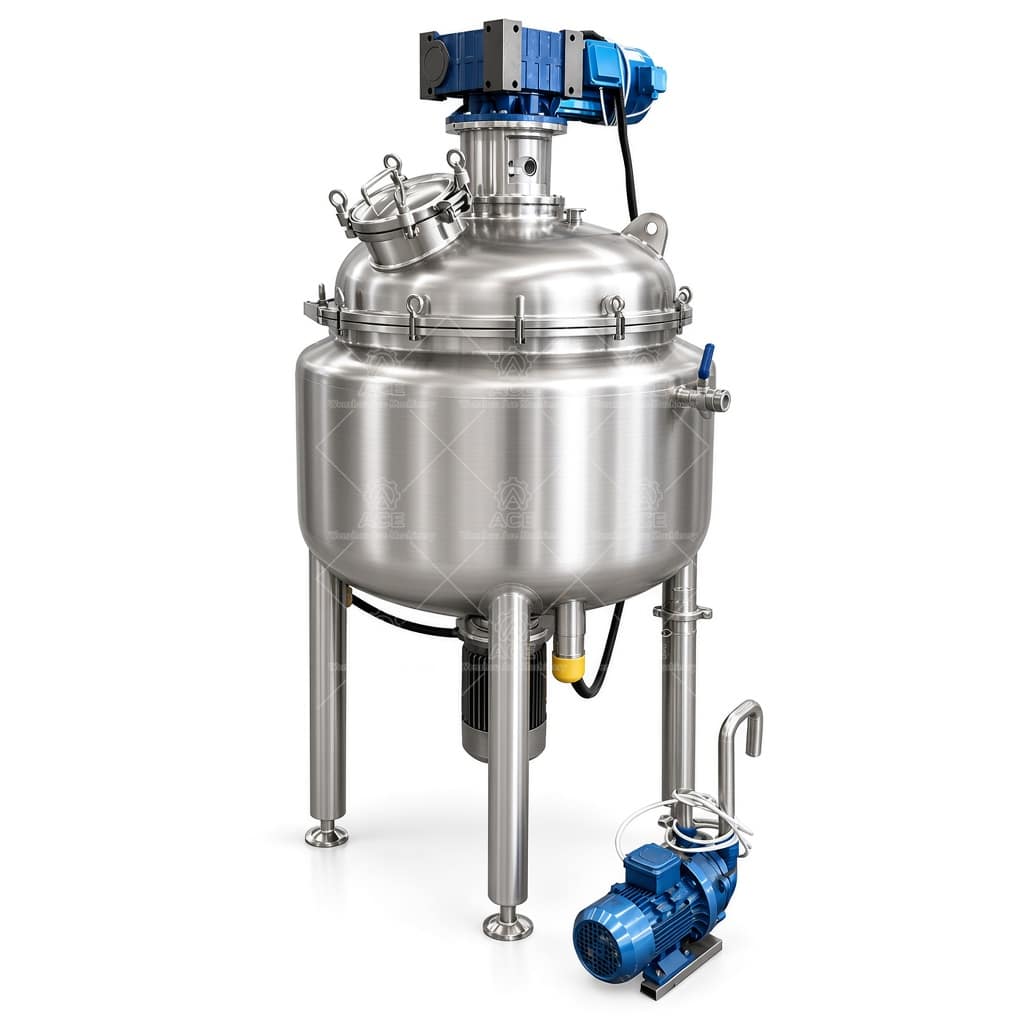

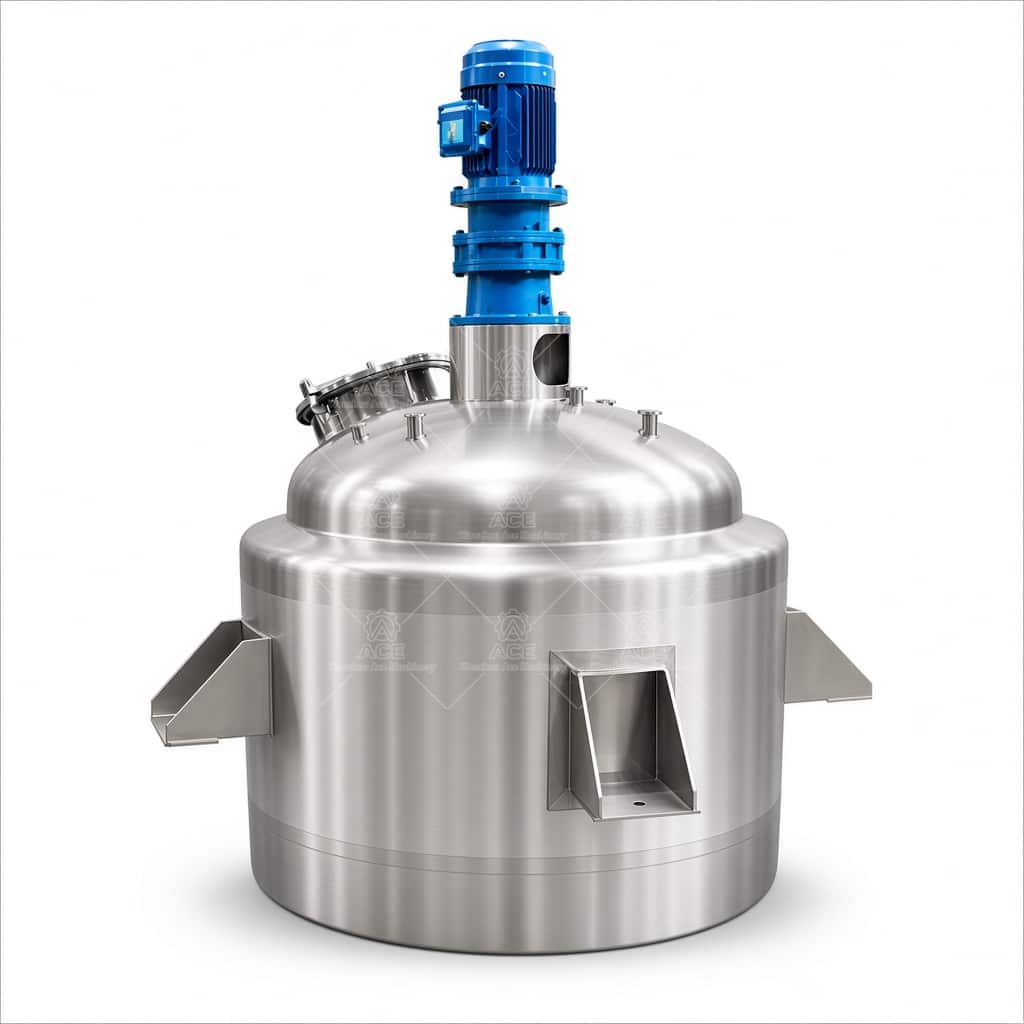

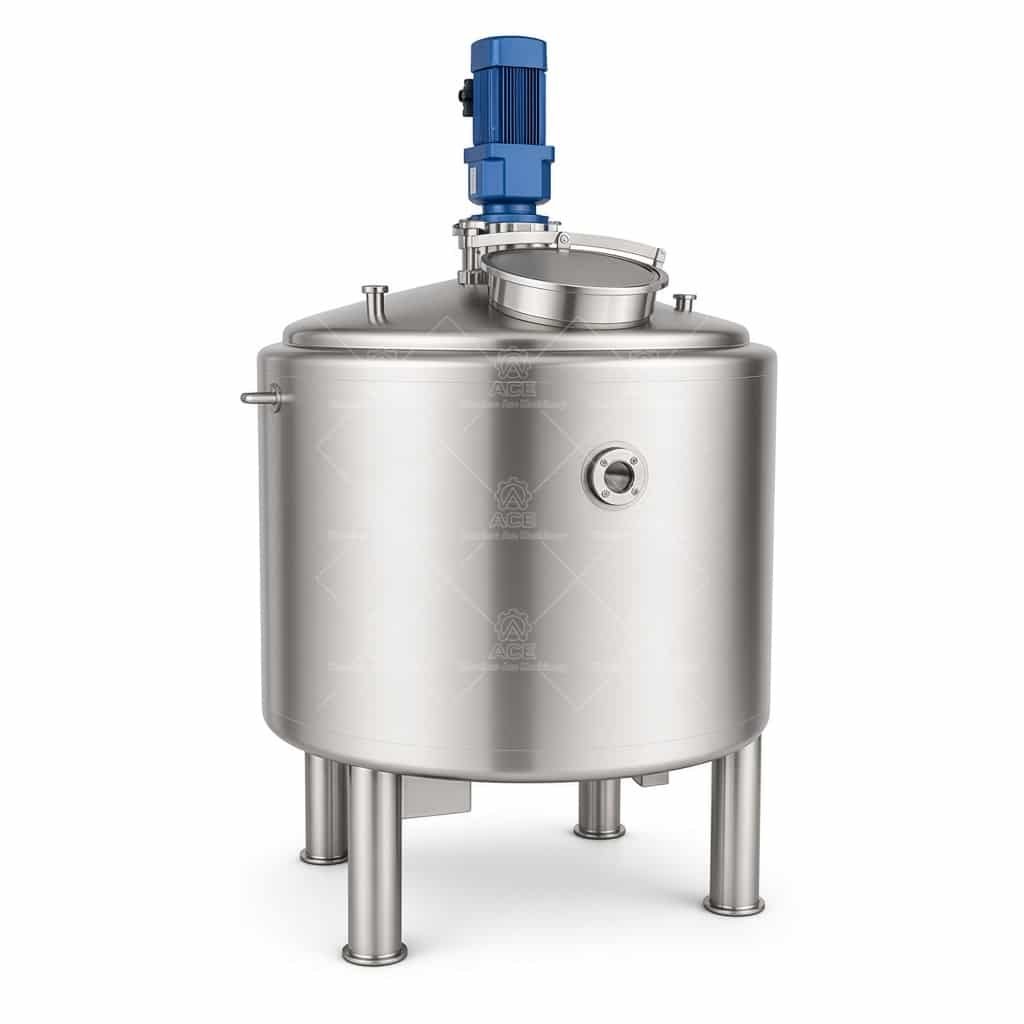

Stainless Steel Cosmetic Mixing Tank Reactor Electric Heating Magnetic Stirrer
Jacketed stainless steel mixing tank reactor with electric heating and magnetic-drive agitation, built for cosmetic emulsions, creams, and chemical batches. 304 or 316L wetted parts, polished interior, optional homogenizer. Share your material, batch volume, temperature, pressure, and mixing needs for a configured quote.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$3,763.26 – $4,687.14Price range: $3,763.26 through $4,687.14
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
This is a jacketed stainless steel mixing tank with electric heating and a magnetic-drive agitator, built for cosmetic emulsions, creams, and low- to medium-viscosity chemical batches. We build it as a reactor rather than a holding tank, because the same unit often has to heat, disperse, emulsify, and cool in one cycle.
Wetted parts are 304 or 316L. The grade follows the product: 316L for acidic, salty, or chloride-bearing formulations, 304 for most neutral cosmetic bases at lower cost. Inner wall thickness is calculated from design pressure and tank diameter, so we do not fix it in advance. Welds are ground flush and the interior polished to an Ra agreed with the customer, commonly 0.4–0.8 µm where residue matters.
Electric heating runs immersion elements in a thermal oil or water jacket, which removes the need for a site steam boiler and gives tight temperature control. Cooling uses the jacket circuit or an internal coil. The magnetic stirring system keeps a rotating seal out of the product path: the impeller is driven through a magnetic coupling, so there is no shaft seal to leak and no lubricant contact with the batch. Anchor, paddle, and high-shear homogenizer heads are available, depending on whether the job is bulk blending or droplet-size reduction.
Typical installations
Cosmetic and personal care emulsions, pharmaceutical ointment bases, food sauces and syrups, and general chemical blending where a sanitary, heatable, seal-free vessel is required.
Specifications
| Parameter | Details |
|---|---|
| Capacity | Set by batch size; working volume confirmed at order |
| Material | 304 or 316L stainless steel, wetted parts |
| Inner wall thickness | Calculated from design pressure and diameter |
| Heating | Electric immersion elements in oil or water jacket |
| Cooling | Jacket circuit or internal coil |
| Working pressure | Atmospheric, pressurized, or vacuum — stated by customer |
| Design temperature | Defined per process; controls matched to it |
| Agitation | Magnetic-drive stirrer; anchor, paddle, or homogenizer |
| Seal | Magnetic coupling, no dynamic shaft seal in the product |
| Surface finish | Interior polished to agreed Ra; exterior options available |
What to check before ordering
- Material to be processed, its chemistry, and concentration
- Batch and working volume
- Operating and design temperature
- Atmospheric, pressurized, or vacuum duty
- Viscosity and solids content
- Whether heating, cooling, or both are needed
- Mixing target — blend, suspend, or emulsify
- Cleaning, sealing, and any compliance requirements
FAQ
Can the tank run under vacuum? Yes, but shell thickness, head style, and agitator support change with the vacuum level, so tell us the figure.
How do I pick between 304 and 316L? Look at chloride exposure and cleaning chemicals. When in doubt, 316L is the safer wetted surface.
Is the magnetic drive suitable for high viscosity? It suits low to medium viscosity well. Heavy pastes usually call for a top-entry mechanical agitator instead.
Send us the material, batch capacity, operating temperature, pressure requirement, and mixing goal, and our engineers will propose a configuration and quote the vessel accordingly.
