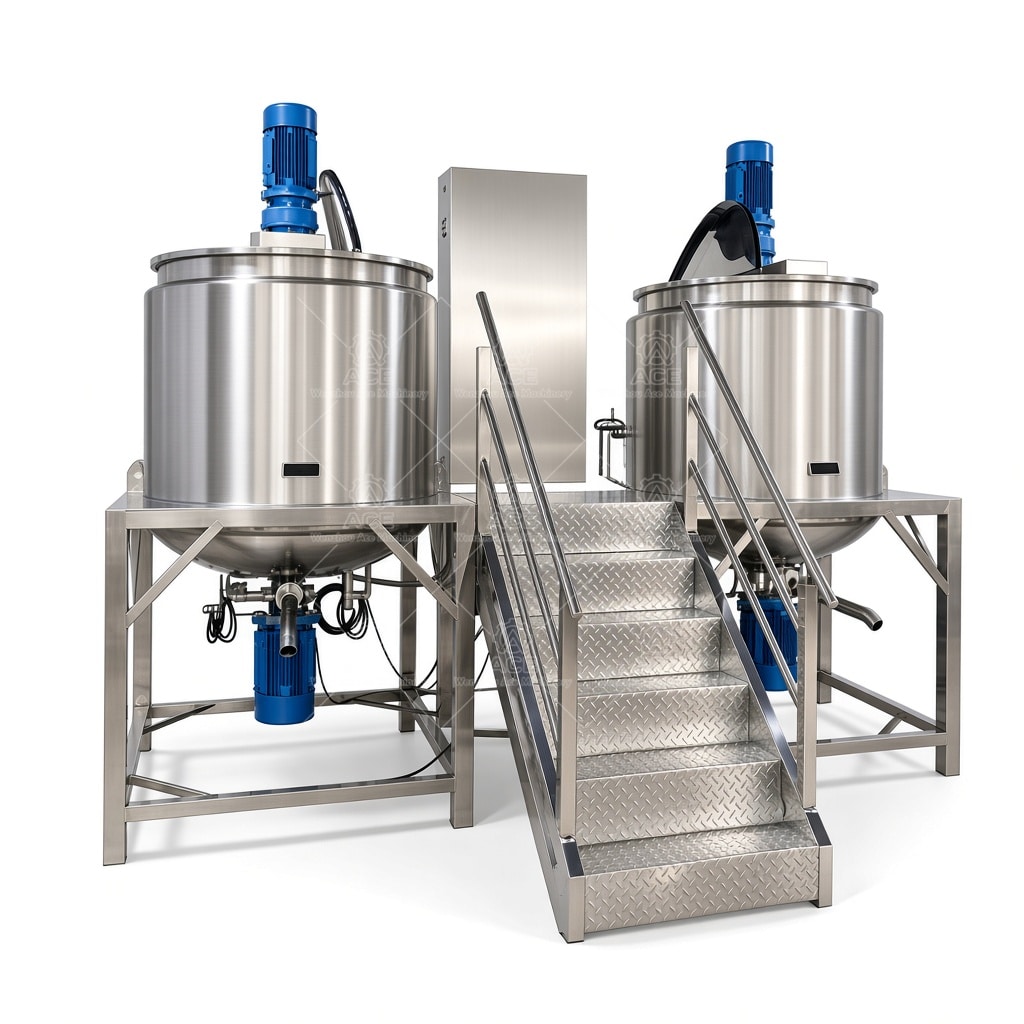

PLC Vacuum Homogenizer Mixer for Cosmetic Cream and Lotion Production - Image 1

PLC Vacuum Homogenizer Mixer for Cosmetic Cream and Lotion Production - Image 2

PLC Vacuum Homogenizer Mixer for Cosmetic Cream and Lotion Production

PLC-controlled vacuum homogenizer systems are configured for cosmetic lotion and body cream production in capacities from 5 to 5,000 L. Homogenizer, agitator, product-contact materials, surface finish, vacuum sealing, and optional heating are selected around batch size, viscosity, formulation, and cleaning requirements. Share your process sequence and target working volume to help define a practical vessel and drive configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $7,130.11 through $7,991.43

Ask For A Quotation

Guaranteed Safe Checkout

Vacuum mixing for creams and lotions

We configure this vacuum homogenizer emulsifier for cosmetic batches from 5 to 5,000 L. It is used to disperse oil and water phases, reduce visible agglomerates, and mix products such as body cream and lotion under vacuum. The right arrangement depends on the formulation: a thick cream may need a different sweep agitator and drive torque than a pourable lotion. Confirm whether the stated capacity refers to vessel volume or working batch volume before comparing quotations.

Construction and process choices

Product-contact stainless steel is selected to match the formula, cleaning chemicals, and customer requirements. 304 stainless steel may suit some applications; 316L is commonly specified where the formulation or cleaning process calls for greater corrosion resistance. Final grade, surface finish, weld treatment, and polishing requirements should be agreed in the equipment specification. We pay particular attention to internal seams, outlet geometry, and areas where viscous product can remain after discharge.

The homogenizer head and vessel agitator serve different purposes. A rotor-stator head creates localized high shear for emulsification and dispersion; a wall-scraping or anchor-style agitator can help move viscous material through the vessel. Motor and gearbox sizing depend on viscosity, batch size, and mixing sequence. Vacuum level and seal arrangement also require review against the process and cleaning method. PLC controls can be configured around the required operating sequence and instrumentation.

Heating or cooling can be considered when the process requires controlled phase preparation or temperature-sensitive mixing. A jacketed vessel is one possible arrangement, but the heat-transfer medium, target temperature, batch time, and product viscosity affect jacket design and control response. These details should be defined before fabrication.

Configuration summary

Item	Available basis
Capacity	5–5,000 L; working volume to be confirmed
Control	PLC controlled; sequence and instrumentation specified by project
Mixing system	Homogenizer and agitator selected for product behavior
Material and finish	Specified for formulation, cleaning, and hygiene requirements
Heating	Optional process-dependent configuration

Applications and purchasing questions

Typical applications include cosmetic lotions, body creams, and related emulsions. Before requesting a quotation, share batch size, formulation viscosity or a sample, ingredient addition order, target temperature, mixing time, cleaning procedure, utilities, and site electrical requirements. These details help our engineers size the drives and define vessel, seal, and control options.

FAQ

Can one machine handle both lotion and cream? Often, but the viscosity range and batch sizes must be checked against agitator geometry and drive torque.

Is heating included? Not necessarily. Specify heating or cooling needs and the intended temperature range.

How do I select capacity? Provide the normal and maximum working batch volumes, not just the nominal vessel size.
