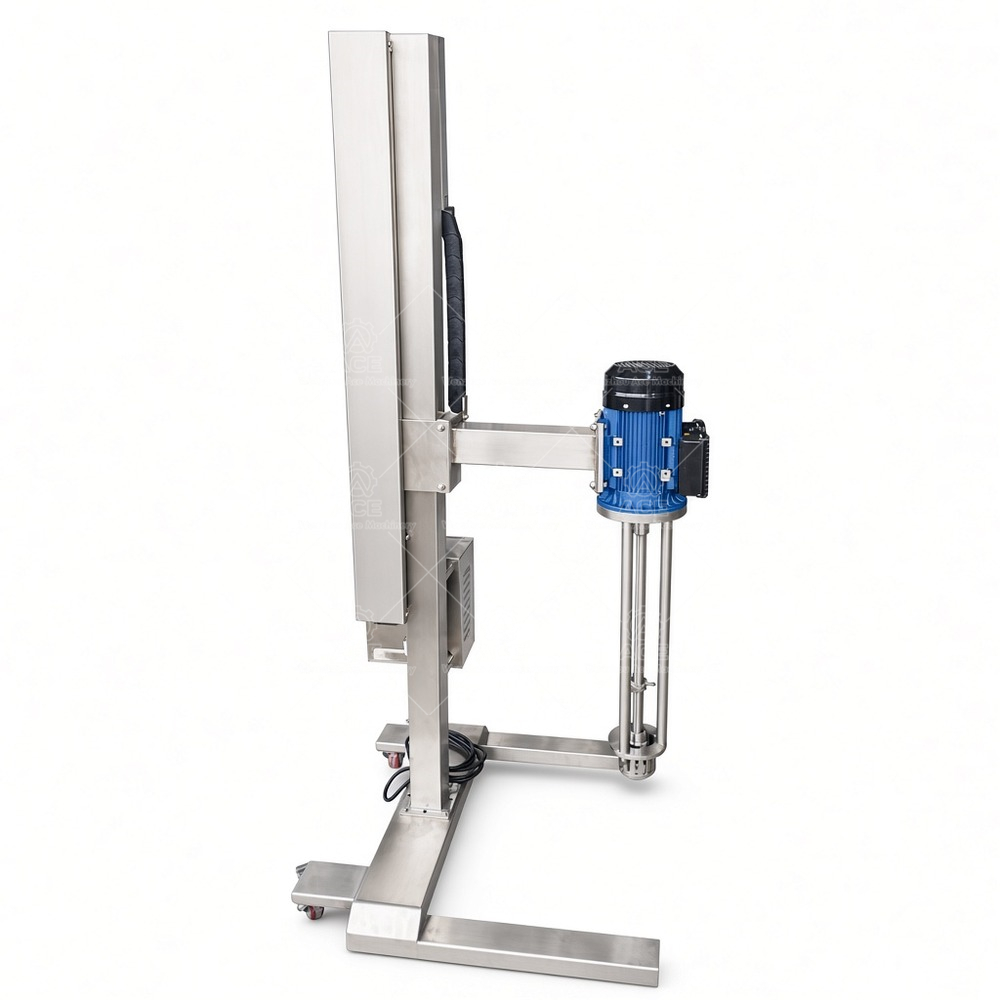

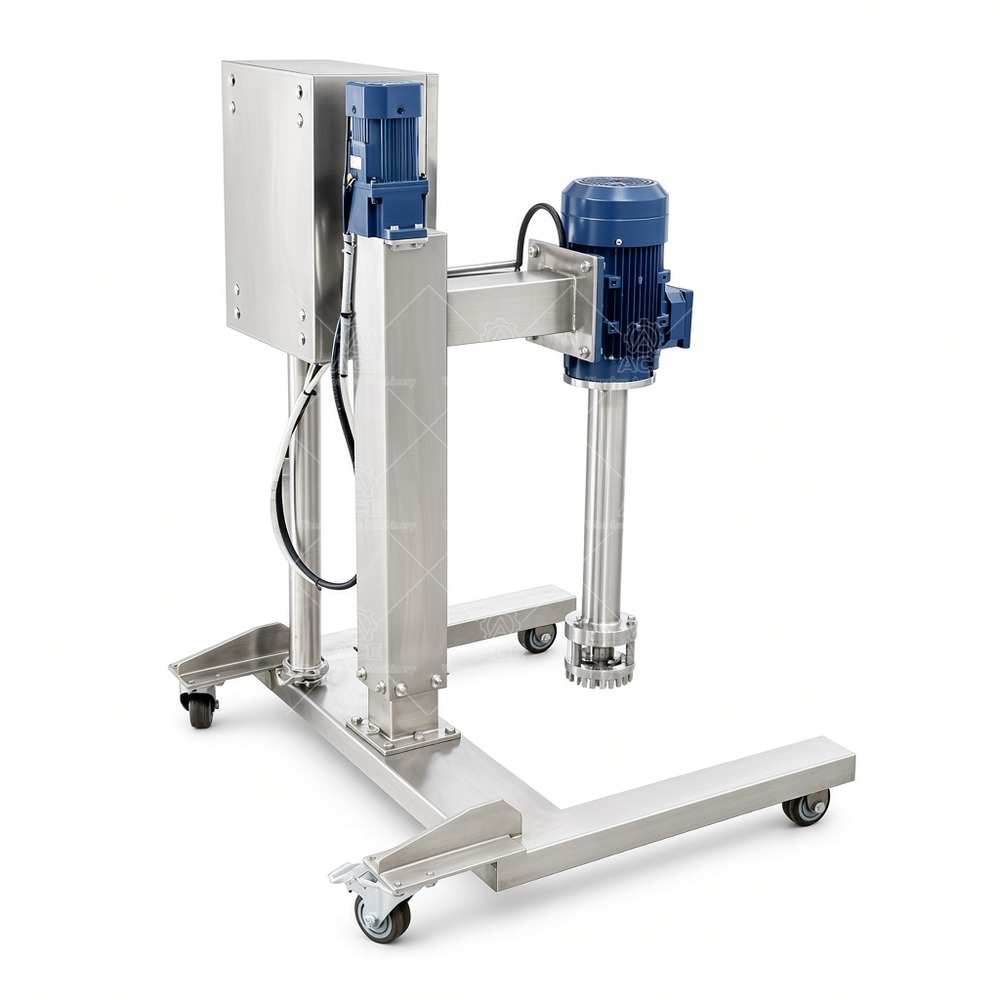

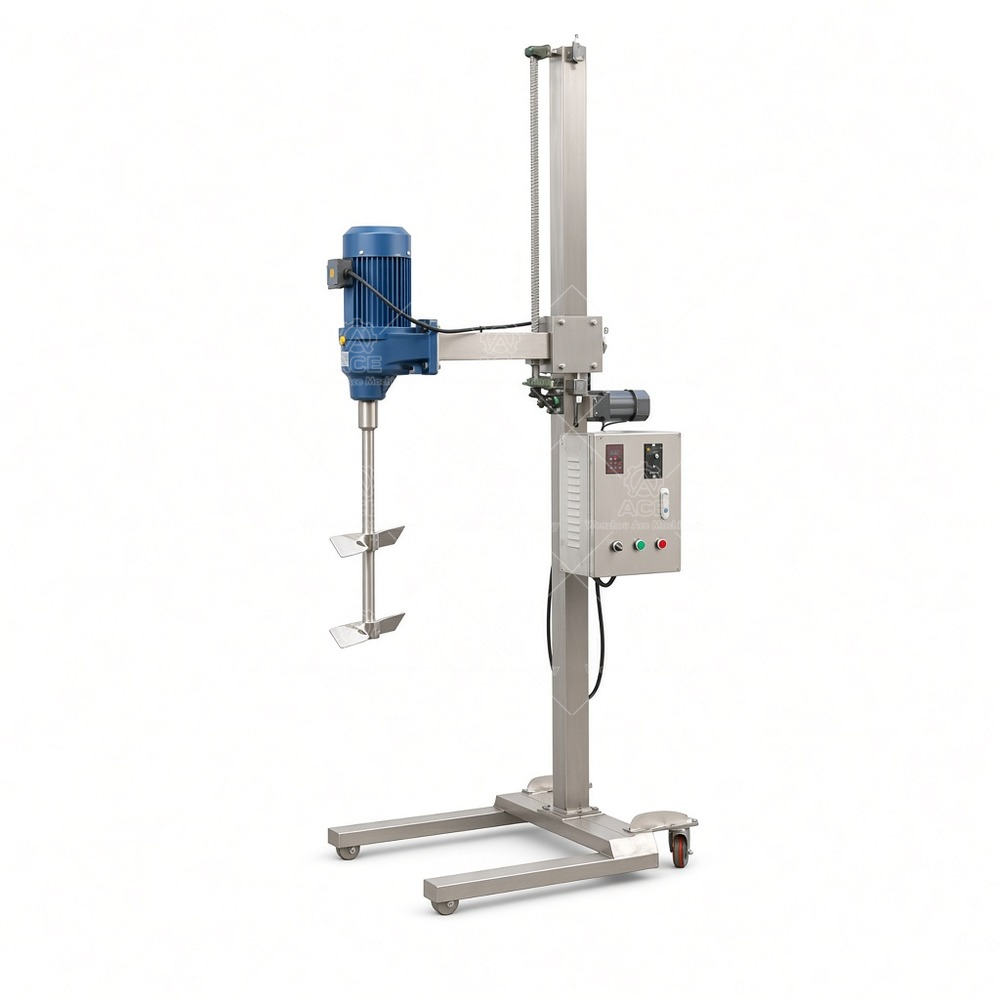

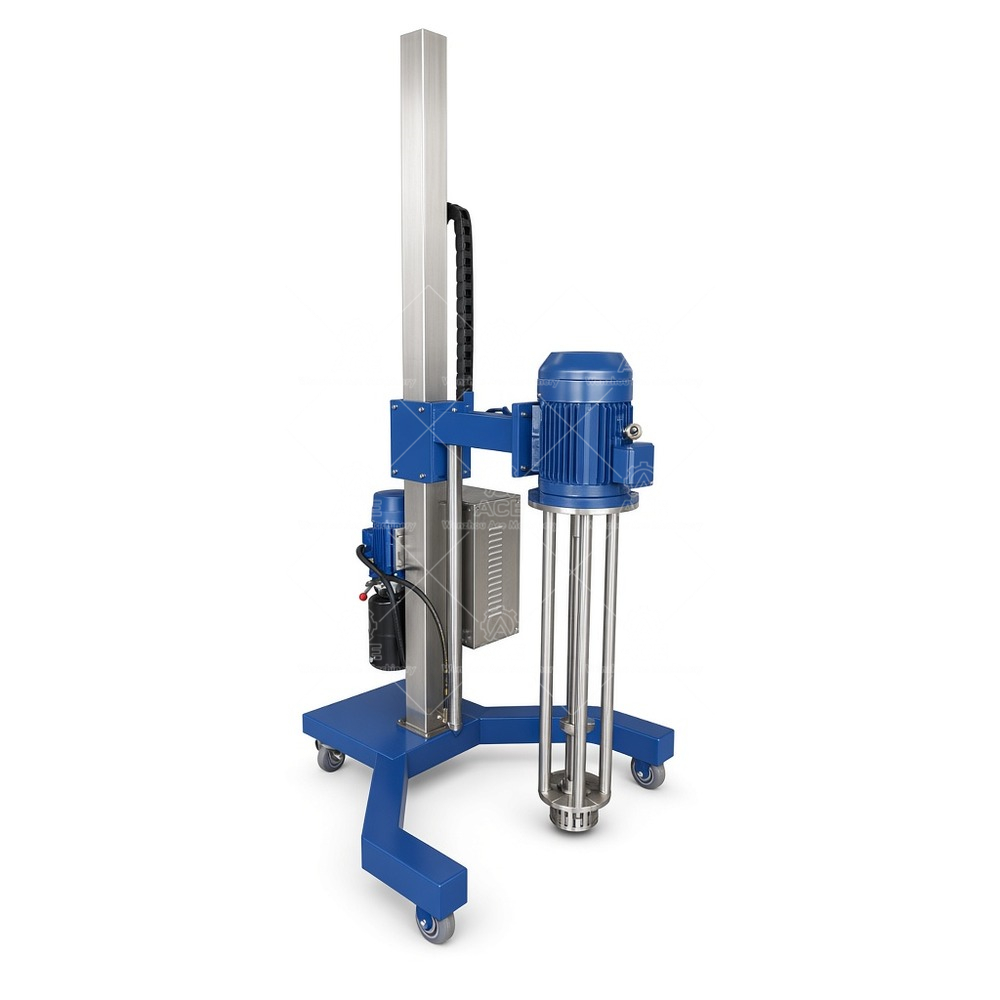

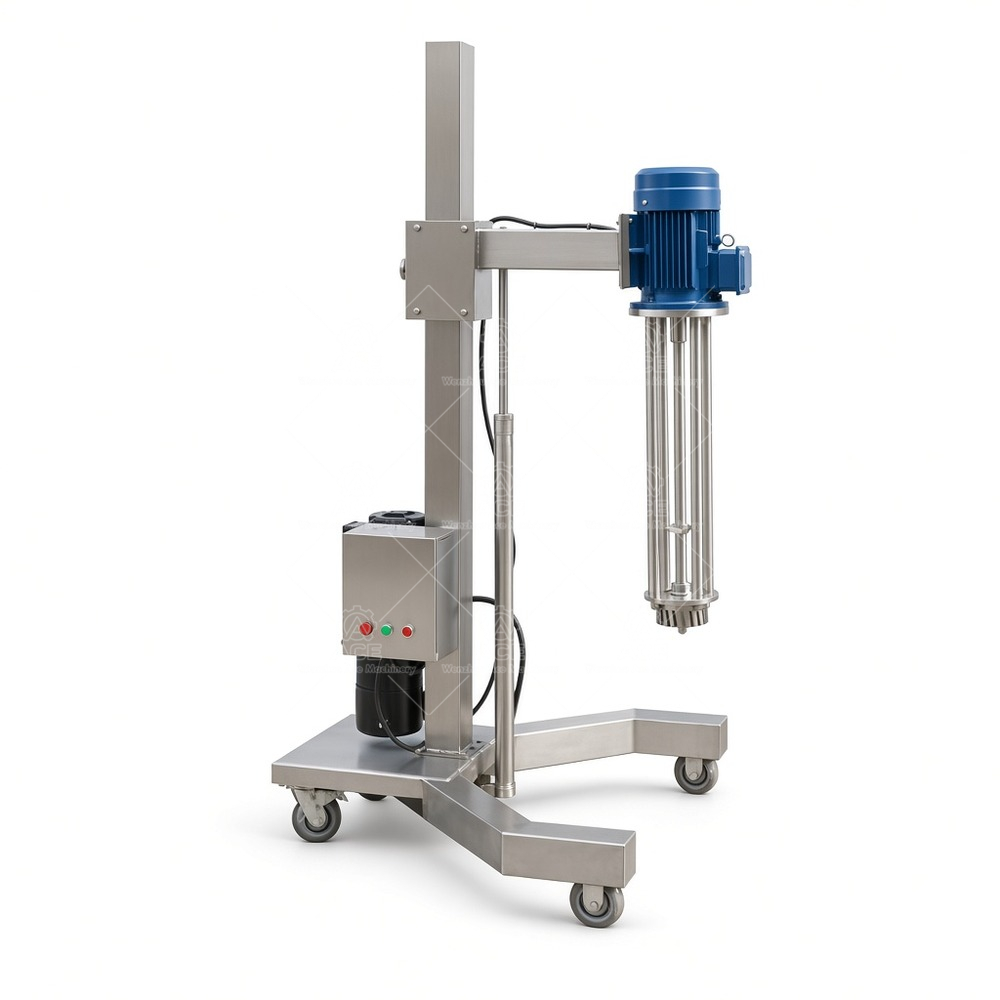

Mobile Lift Batch High Shear Mixer for Xanthan Gum Food Cosmetics
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,031.68 through $3,183.22
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch High Shear Mixer Built for Mobile Production
Our mobile lift type high shear mixer unit is a batch high shear mixer for plants that need one mixer to serve several vessels, rooms, or process lines. The frame runs on casters, so your team can move it between mixing containers where layout and floor conditions allow. If your process is fixed at one tank, a stationary frame is usually simpler to maintain and easier to pipe.
The unit handles high-speed shearing, dispersion, emulsification, and powder incorporation into liquids. We configure the motor, VFD, voltage, mixing head, and wetted parts around the product, not the other way around. Xanthan gum solutions, cosmetic creams, shampoo, jam, sauces, and similar formulations behave differently in the tank. Viscosity, solids loading, and container geometry decide the head design and power requirement.
Configurable Specifications
- Mobile frame with casters for movement between approved production areas and mixing vessels
- VFD option for adjustable speed control from 0 to 3000 rpm, subject to selected motor and configuration
- Voltage options from 220V to 480V; voltage, frequency, phase, and electrical arrangement confirmed for destination market
- Motor power from 1.5 kW to 11 kW according to process demand and model
- Functions: high-speed shear, dispersion, emulsification, and powder-in-liquid mixing
- Custom motor power, voltage, control system, mixing head, and other configuration details
- Stainless steel and product-contact materials specified to suit the application
Choosing a Batch High Shear Mixer
Start with batch size and container size, then confirm product viscosity and ingredients. A low-viscosity shampoo and a jam or sauce need different mixing heads and shaft arrangements. Required mixing speed and motor power follow the duty: gentle powder wet-out is not the same as heavy dispersion. Check local voltage, frequency, and phase before quotation. Decide whether a mobile high shear mixer or fixed installation suits your production flow. When dispersing powders, describe feed method, dusting risk, and whether the powder tends to lump.
Applications
Our industrial high shear mixers are used in food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints and coatings. They support powder dispersion and liquid-liquid emulsification. Suitable mixing head, materials, and operating parameters depend on product viscosity, ingredients, and process requirements.
FAQ
Can the mixer run at different speeds? With a VFD, speed is adjustable within the selected motor and configuration range.
Do you supply stainless steel contact parts? Yes. Wetted materials are specified according to the product and cleaning requirements.
What do you need for a recommendation? Batch size, container dimensions, viscosity, ingredients, target speed, required motor power, and local electrical specifications.
Send your batch volume, material behavior, target rpm, motor power requirement, and site voltage to Ace Mixer for a configured high shear mixer recommendation and quotation.
Mobile lift batch high shear mixer for xanthan gum, shampoo, jam, sauces, and similar products. Ace Mixer configures motor power from 1.5 to 11 kW, VFD speed control, voltage options, mixing head, and stainless steel contact parts around your batch size, viscosity, and production layout. Send batch details and electrical specifications for a suitable recommendation.
