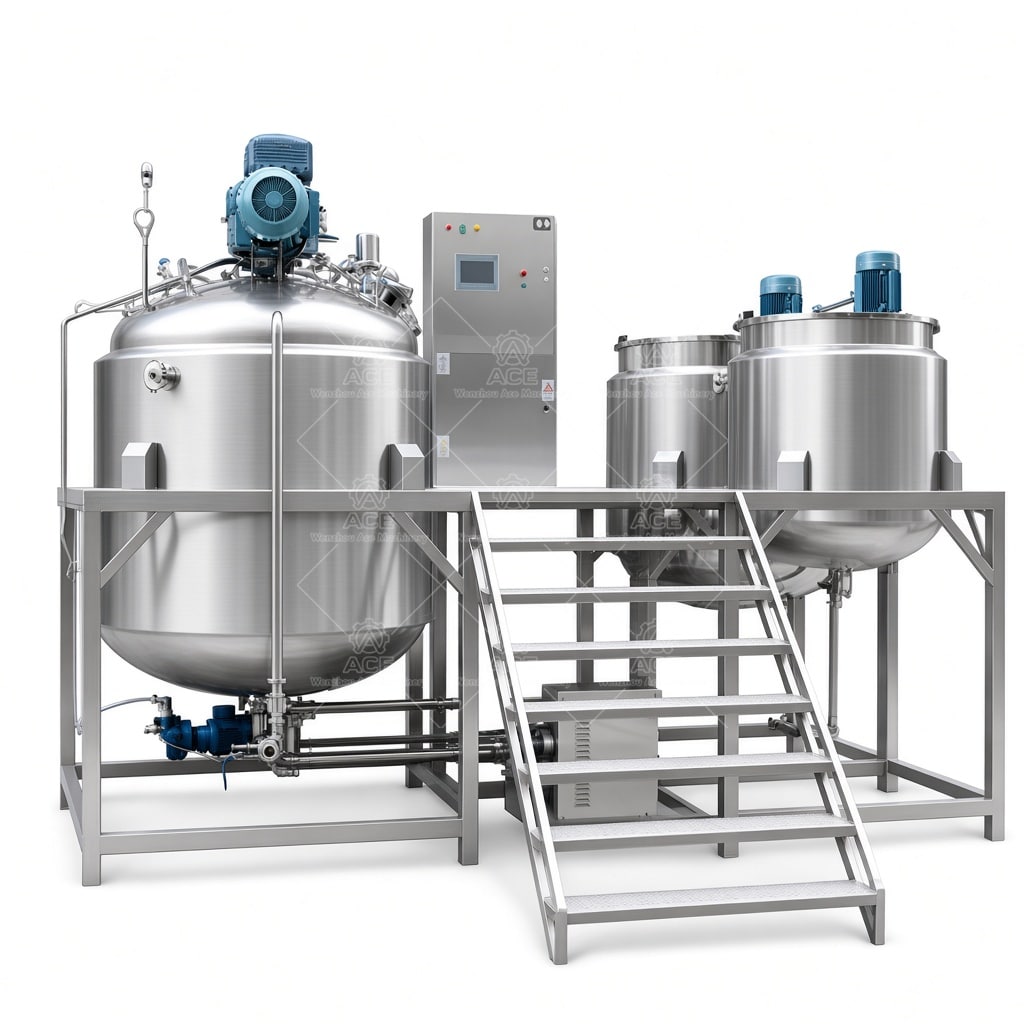

Liquid Soap and Detergent Homogenizing Mixing Machine - Image 1

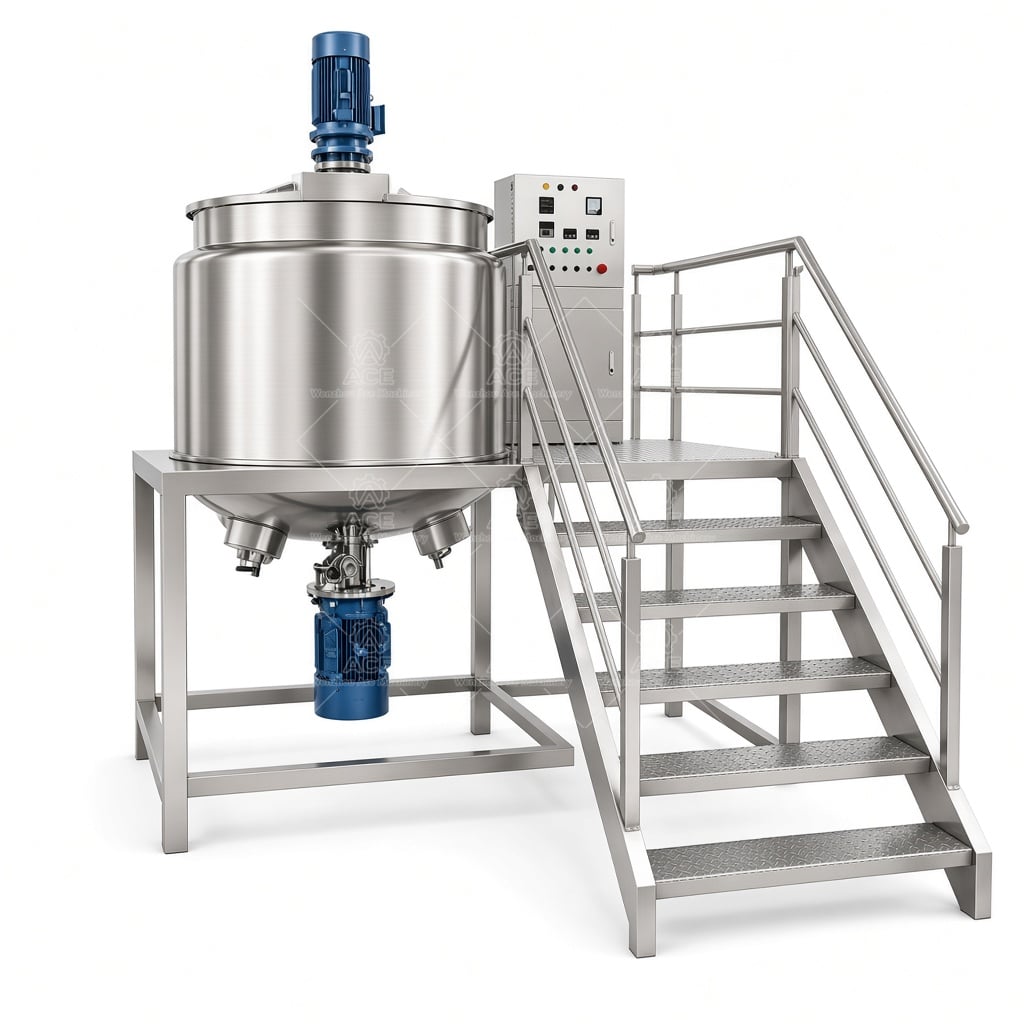

Liquid Soap and Detergent Homogenizing Mixing Machine - Image 2

Click to enlarge

Liquid Soap and Detergent Homogenizing Mixing Machine

This liquid soap and detergent mixing machine can be configured for products such as shampoo, household cleaners, and compatible disinfectants. Agitator type, homogenizing duty, vessel materials, seals, and optional temperature control depend on the formulation and production process. Share batch volume, viscosity, temperature requirements, cleaning method, and ingredient compatibility details to develop a suitable equipment specification.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $7,533.70 through $8,694.64

Ask For A Quotation

Guaranteed Safe Checkout

Mixing equipment for liquid cleaning and personal care products

Liquid soap, detergent, shampoo, and disinfectant batches can behave very differently in the same vessel. Surfactant blends may foam during charging, thicken as they cool, or lose viscosity under excessive shear. We configure each production mixing machine around the formulation, batch size, required cycle time, and cleaning method rather than assuming one agitator suits every product.

A typical setup may combine a slow-speed anchor or paddle agitator for bulk circulation with a separate high-shear homogenizer when the formula needs finer dispersion or faster emulsification. Those components are selected to suit the product’s viscosity and sensitivity to air entrainment. For foam-prone formulations, controlled powder addition, suitable impeller placement, and a measured mixing sequence can matter as much as motor power.

Construction and process options

Product-contact parts can be specified in 304 or 316 stainless steel. The appropriate grade depends on ingredients, chloride exposure, cleaning chemicals, and sanitation requirements. Welds and internal transitions should be finished to the required cleanability level; the surface finish is specified for the process rather than assumed. Seal materials are selected against the formulation and washdown conditions. Mechanical seals may be appropriate for demanding service, while other arrangements can suit less challenging duties.

Heating or cooling can be considered when a process requires controlled temperature during surfactant dissolution, viscosity adjustment, or batch cooling. Jacket type, heat-transfer area, utility temperature, and control accuracy depend on the vessel and production recipe. Motor, gearbox, and drive selection likewise depend on working volume, viscosity, agitator geometry, and required speed range. Variable-speed control can help manage charging and mixing stages, but it does not replace correct impeller sizing.

Configuration details

Item	Engineering basis
Batch capacity	Set from working volume, headspace, and production schedule
Agitation	Selected for viscosity, circulation, and foam behavior
Homogenizing	Specified by dispersion needs and acceptable shear
Contact materials	304 or 316 stainless steel, subject to chemical review
Temperature system	Optional; defined by process and utility conditions

Where it is used

Typical applications include liquid hand soap, household detergent, shampoo, and compatible disinfectant formulations. A detergent with abrasive solids or an oxidizing disinfectant may require different seals, materials, or mixing methods than a standard shampoo base.

FAQs

Can one machine make several products? Often, if materials, seals, cleaning procedures, and agitator performance are suitable across the recipes.

What should we provide for a quotation? Send batch and working volumes, ingredient or safety data, viscosity range, target temperature, mixing time, cleaning method, utilities, and any required installation constraints. This information lets our engineers recommend a practical configuration without guessing at production conditions.
