Industrial High Shear Homogenizer for Cosmetic Batch Production

This batch high shear homogenizer is configured for cosmetic production duties such as dispersing ingredients and processing creams, lotions, and gels. Vessel volume, rotor-stator arrangement, drive, wetted materials, seals, and temperature control depend on the formulation and operating conditions. Share batch size, viscosity, process temperatures, cleaning method, and production goals so the equipment configuration can be evaluated against your actual process.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $7,978.67 through $9,087.71

Ask For A Quotation

Guaranteed Safe Checkout

Batch homogenizing for cosmetic production

Cosmetic emulsions can be difficult to reproduce when oil addition, powder wet-out, viscosity, or batch size changes. Our batch high shear homogenizer is configured around the product and process: it can disperse ingredients and reduce droplets within a vessel, while a separate anchor or other low-speed agitator may be needed to move viscous material through the tank. A rotor-stator head is not a substitute for bulk circulation, and selecting one without considering viscosity can leave cold or poorly mixed zones.

Construction and configuration

Product-contact parts can be specified in stainless steel grades appropriate to the formulation, cleaning chemicals, and regulatory requirements. Grade selection should be confirmed against the actual ingredients; chloride exposure, for example, can affect corrosion performance. Welds, internal corners, and polished surfaces are designed to suit cleanability and the required finish. Seal materials and arrangement depend on temperature, ingredients, cleaning procedure, and whether the process requires a particular containment level.

Drive power, rotor-stator geometry, speed control, and any gearbox are selected using batch volume, viscosity profile, solids, and target processing time. For creams that thicken during emulsification, we review startup torque and circulation needs rather than sizing from water-like conditions. Heating may use a jacket or another vessel arrangement, with temperature control matched to the process; heating and cooling rates depend on batch size, heat-transfer area, and product properties.

Typical applications

Common duties include creams, lotions, gels, sunscreens, and other skincare emulsions. The same equipment concept may suit selected pharmaceutical, food, or chemical batches, subject to material, sanitation, and process requirements. A pilot or production trial can help establish addition sequence, shear time, and temperature limits before finalizing a production configuration.

Technical specification framework

Item	Basis for configuration
Batch capacity	Working volume, vessel geometry, and headspace
Wetted materials and finish	Formula, cleaning agents, and cleanliness requirements
Drive and mixing head	Viscosity, solids, shear duty, and circulation needs
Heating and controls	Process temperature range and required ramp time
Seals and cleaning	Product compatibility and cleaning method

Purchasing questions

Can one machine handle different formulas? Often, but viscosity range, batch size, and cleaning changeover requirements determine whether one head and drive arrangement are practical.

What should we send for a quotation? Provide batch and working volumes, ingredient or viscosity details, target temperature, processing sequence, cleaning method, available utilities, and any site or compliance requirements. These details let our engineers recommend a configuration without assuming unverified capacity or performance.

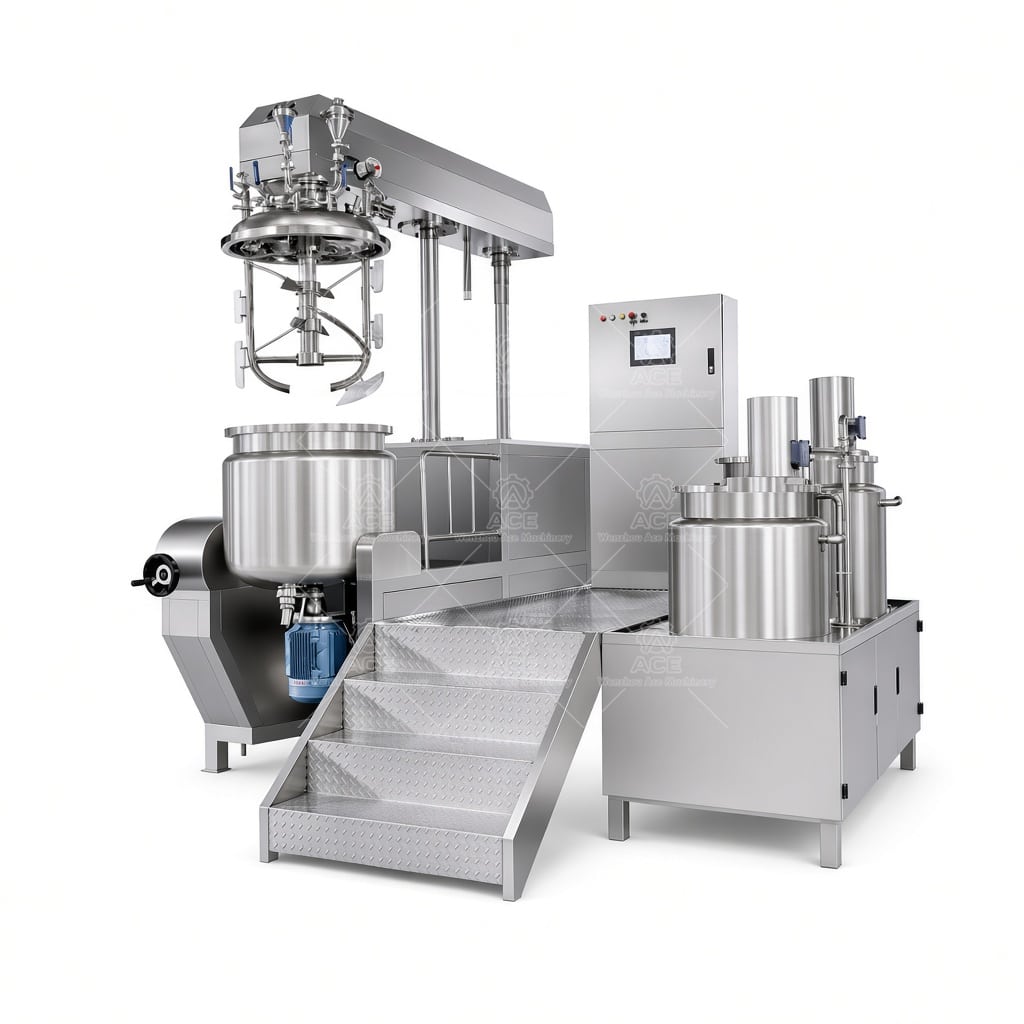

Vacuum Emulsifying Mixer with High Shear Homogenizer for Mayonnaise and Cream
