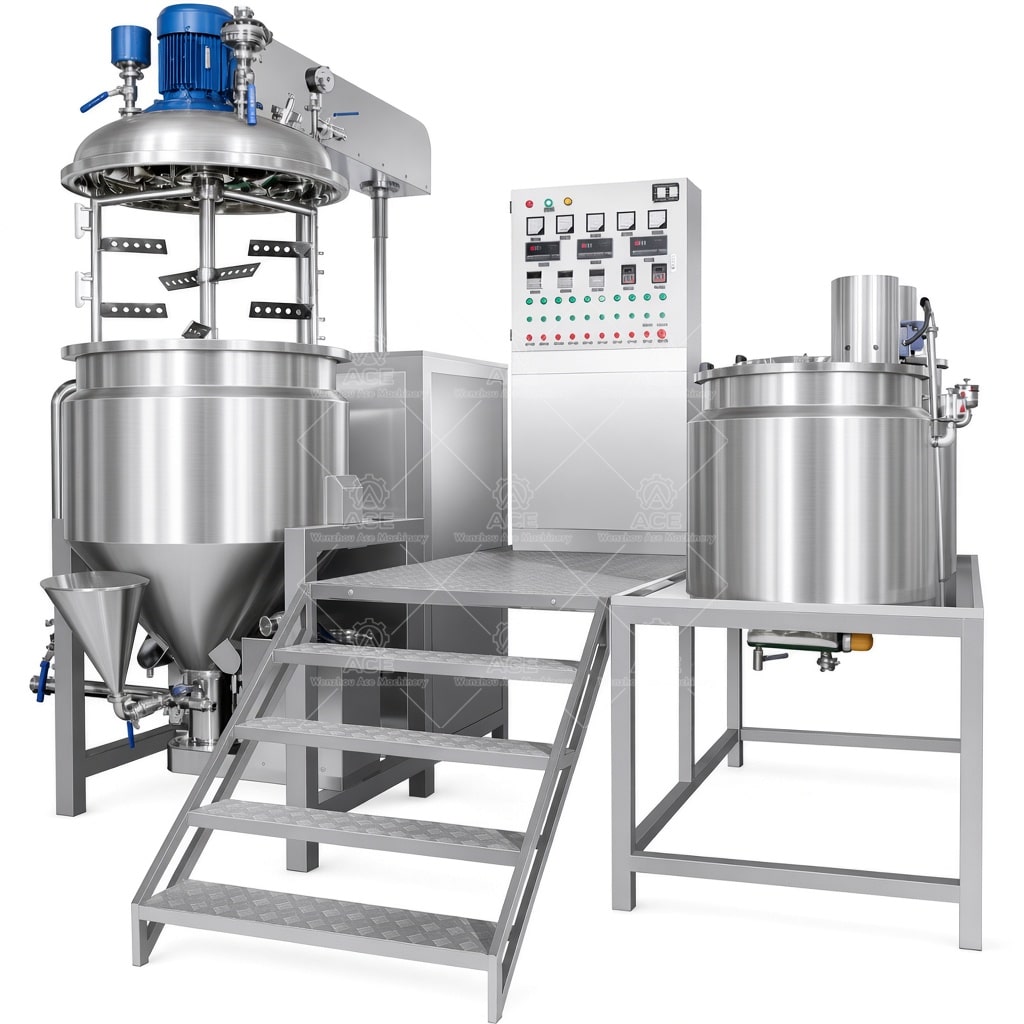

High Shear Vacuum Homogenizer for Cosmetic Cream and Ointment

This high-shear vacuum homogenizer is designed for controlled oil-water mixing and deaeration in cosmetic creams, ointments, and related viscous products. Vessel capacity, stainless steel grade, surface finish, rotor-stator arrangement, agitation, heating or cooling, seals, and controls can be specified around the formula and production process. Share batch size, viscosity, temperature profile, and cleaning requirements to define a suitable configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $6,851.90 through $7,829.67

Ask For A Quotation

Guaranteed Safe Checkout

High-Shear Vacuum Processing for Creams and Ointments

Oil and water phases can separate, trap air, or develop an inconsistent texture if addition rate, temperature, and shear are not coordinated. We configure vacuum homogenizer emulsifiers around the batch process: phase preparation, transfer into the vessel, emulsification, deaeration, and discharge. They are used for cosmetic creams, lotions, ointments, and similar viscous products. The required working volume and formulation behavior determine the vessel and mixing arrangement.

Construction and process configuration

Product-contact parts are commonly specified in 304 or 316L stainless steel. The appropriate grade depends on ingredients, cleaning chemicals, chloride exposure, and sanitation requirements. Welds in product-contact areas should be continuous and finished to the agreed surface condition; vessel polishing and passivation requirements should be stated in the purchase specification. Seal materials also need review against product compatibility, temperature, and cleaning method.

A high-shear rotor-stator head breaks droplets into a finer dispersion, while a separate sweep or anchor agitator may help move a viscous batch through the vessel. Motor power, speed control, reducer selection, and impeller geometry depend on batch size, viscosity, target texture, and process time. Vacuum level and vessel design must be matched to the deaeration requirement and operating conditions; vacuum handling does not replace suitable vessel design or process validation.

When heating or cooling is required, the vessel may be configured with a jacket or another agreed heat-transfer arrangement. Temperature range, heating medium, cooling duty, and product sensitivity guide the design. A temperature sensor location and control method should be agreed early, especially when the batch thickens during cooling.

Configuration details to confirm

Item	Specification basis
Working capacity	Batch size, minimum fill, and headspace
Contact materials and finish	Formula, cleaning regime, and hygiene requirements
Homogenizing and agitation system	Viscosity, shear sensitivity, and desired batch time
Heating, cooling, and vacuum	Temperature profile and process requirements
Controls and discharge	Operator needs, transfer method, and installation conditions

Questions from production teams

Can one setup process both creams and ointments? Possibly, but their viscosity and shear response can differ substantially. Share representative formulas or viscosity data before confirming the drive and mixing geometry.

What should be included in a quotation request? Provide batch volume, ingredients or compatibility constraints, target temperature, process sequence, cleaning method, utilities, and required discharge arrangement. These details let our engineers recommend a configuration without assuming unverified performance targets.

How do we select a model? Start with the required working range and the hardest product to mix. Confirm minimum and maximum batch levels, then review shear, heating or cooling, vacuum, and cleaning needs with the manufacturer before fixing the specification.
