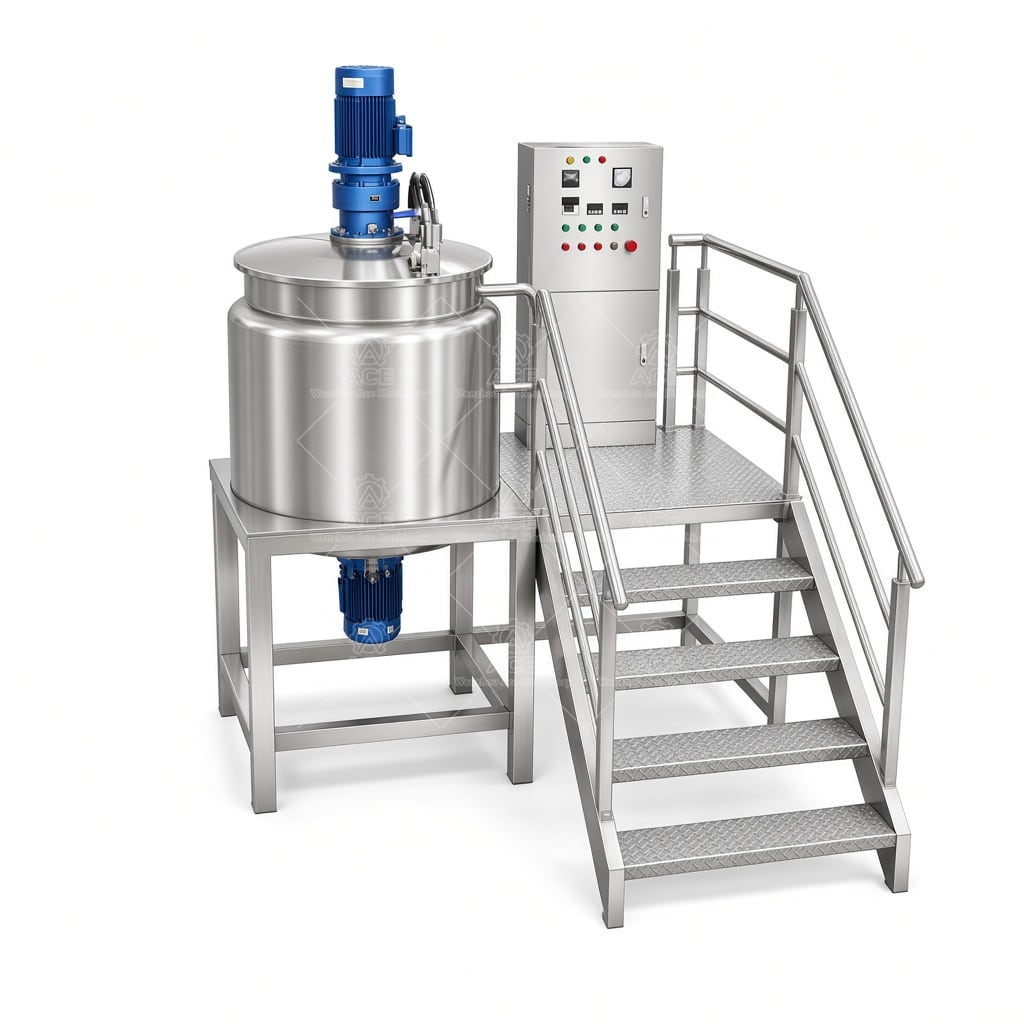

Electric Heated Liquid Soap and Dishwashing Liquid Mixing Machine - Image 1

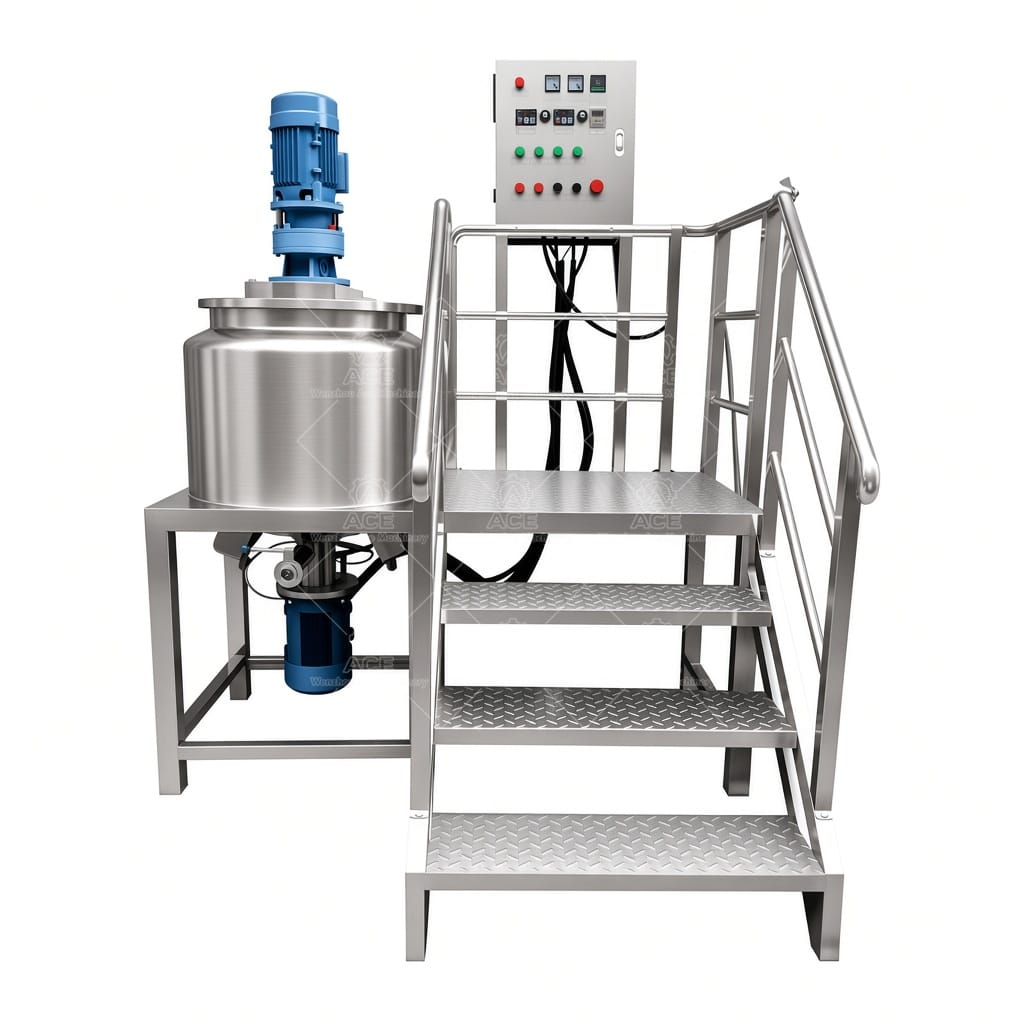

Electric Heated Liquid Soap and Dishwashing Liquid Mixing Machine - Image 2

Click to enlarge

Electric Heated Liquid Soap and Dishwashing Liquid Mixing Machine

This electric-heated mixing machine is intended for batch production of liquid soap, dishwashing liquid, and related detergent products. Vessel capacity, agitator geometry, motor and reducer sizing, heating power, contact materials, and temperature controls depend on the formula and production conditions. Share batch volume, viscosity, target temperature, cleaning method, and electrical supply to support a suitable equipment configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $6,323.66 through $7,012.31

Ask For A Quotation

Guaranteed Safe Checkout

Liquid Soap Mixing for Controlled Batch Production

Liquid soap and dishwashing products can vary significantly in viscosity, foaming behavior, and heat sensitivity. We configure this mixing equipment around the batch process, rather than assuming one agitator or heating setup will suit every formula. The electric heating system can support processes that require warming during mixing; the required temperature range and heating rate depend on the product, batch size, vessel design, and available power.

Agitator selection matters. A lower-viscosity detergent may mix with a conventional impeller, while a thicker soap base may need a different blade geometry and drive torque. Excessive agitation can entrain air or create persistent foam, so we review the formula, target batch time, and acceptable aeration before recommending a drive arrangement. A reducer and motor are sized to the working load, not just the vessel volume.

Construction and Configuration

Product-contact parts are commonly specified in stainless steel. Grade selection depends on the ingredients, cleaning chemicals, and corrosion exposure; 304 and 316 stainless steel are options when appropriate, not automatic guarantees of compatibility. Welds, internal finish, drainability, and seal materials should be confirmed against the cleaning procedure. Surface finish requirements may differ between a general detergent and a process with stricter hygiene expectations.

Heating controls and sensor placement should reflect how the batch is mixed. A temperature sensor positioned in a poorly circulated area can give a misleading reading. We also review electrical supply, operator access, discharge arrangement, cleaning method, and the installation environment. These details affect usability and maintenance as much as the vessel itself.

Typical Specification Review

Item	Configuration basis
Batch capacity	Set from working volume, headspace, and batch frequency
Heating	Electric; power and control range require process details
Agitator and drive	Selected for viscosity, foam control, and mixing time
Contact materials	Specified for formula and cleaning chemistry

Applications include liquid hand soap, dishwashing liquid, and related household or institutional cleaning products. Before requesting a quotation, provide batch volume, ingredient or viscosity range, target temperature, mixing time, cleaning method, electrical supply, and required discharge setup. These inputs let our engineers recommend a practical vessel and drive configuration without guessing at critical process conditions.
