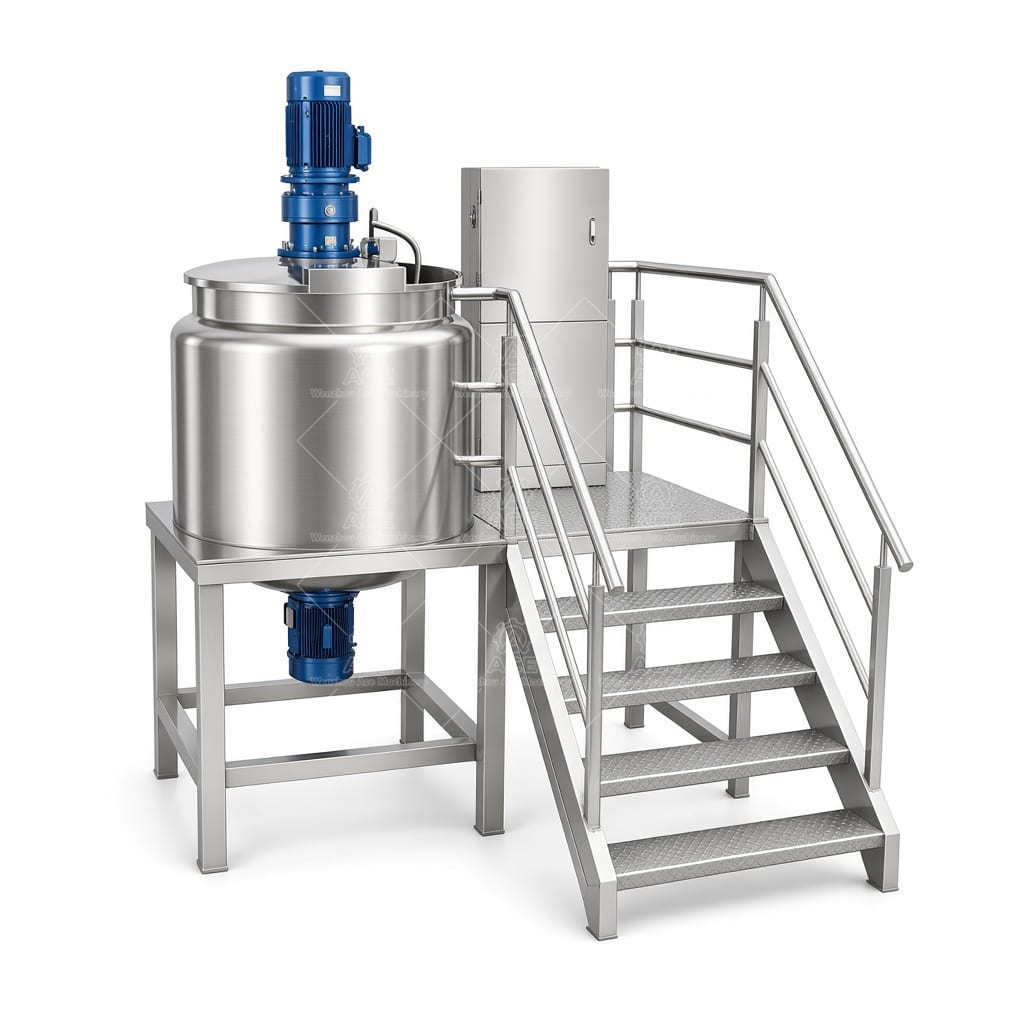

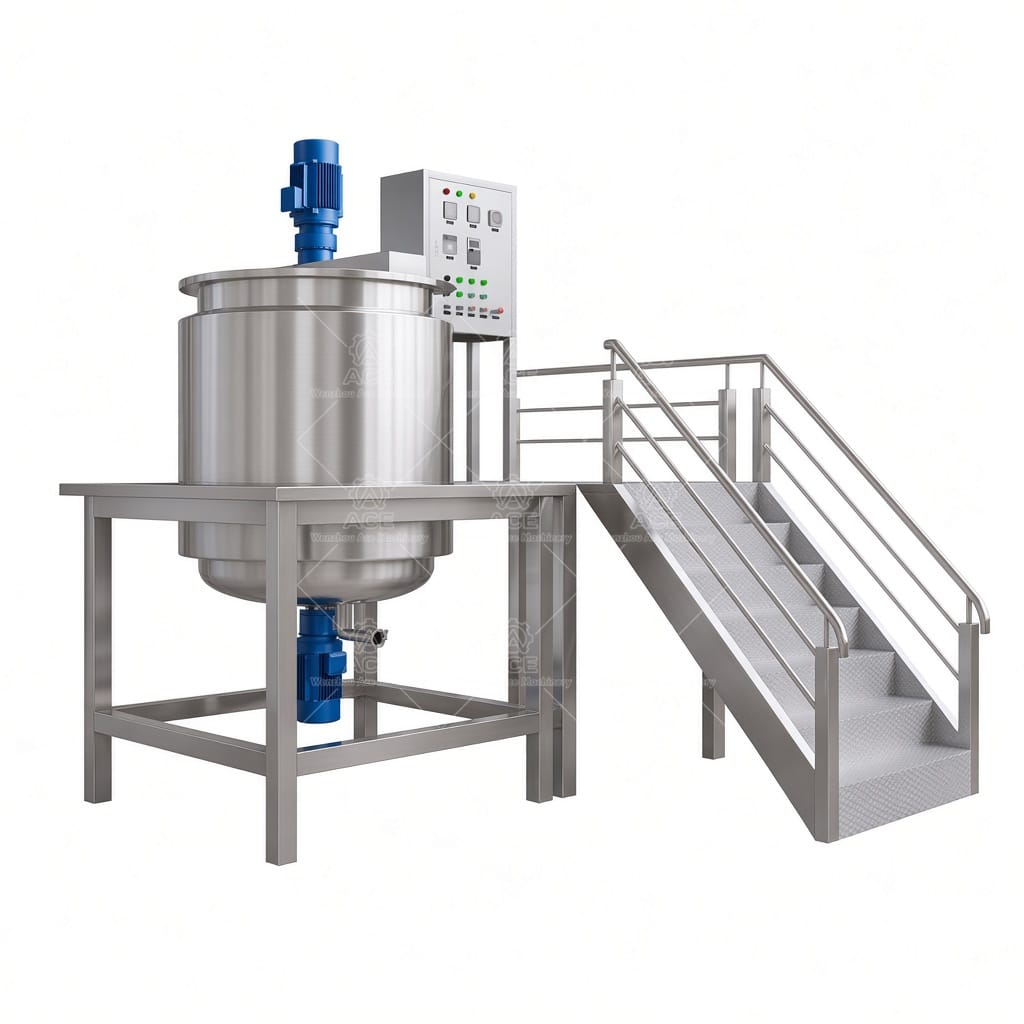

Electric Heated Liquid Detergent Mixing Tank 50L 100L 200L

Electric-heated jacketed mixing vessels are available in 50L, 100L, and 200L nominal capacities for liquid detergent and compatible processing batches. Agitator, drive, product-contact materials, seals, temperature controls, and heating details can be specified around the formula, batch volume, viscosity, cleaning method, and plant utilities. Share these process conditions when requesting a configuration or quote.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $6,079.71 through $7,132.72

Ask For A Quotation

Guaranteed Safe Checkout

Mixing and heating for liquid detergent batches

This jacketed vessel is available in 50L, 100L, and 200L nominal capacities for detergent and other liquid-processing batches. Electric heating supports processes that need controlled warming to help dissolve ingredients, reduce viscosity, or maintain a workable temperature during mixing. The appropriate working volume depends on batch size, foaming behavior, and the headspace needed for agitation; nominal vessel capacity should not be treated as usable batch volume.

Construction and configuration

Product-contact material should be selected against the complete formula, including surfactants, salts, fragrances, pH, and cleaning chemicals. Stainless steel 304 may suit many general-purpose liquids, while 316L can be considered where chloride exposure or stronger corrosion resistance is a concern. Final selection requires compatibility review. Welds, internal corners, drain geometry, and surface finish should be specified around cleaning needs and any hygiene requirements. Seal material also depends on formulation and operating temperature.

The electric jacket arrangement and temperature-control package should be defined with the required batch temperature, heating rate, available power, and control method. Agitator type is a separate process decision: a propeller or similar high-flow impeller may suit low-viscosity liquids, while thicker products may need a different impeller, speed range, or geared drive. Foam-sensitive formulas require attention to impeller placement and operating speed. We confirm the motor, reducer, shaft, and seal arrangement after reviewing viscosity and mixing objectives rather than assuming one drive fits every batch.

Typical specification basis

Item	Available information
Nominal capacity	50L, 100L, or 200L
Vessel type	Electric-heated jacketed mixing vessel
Material, agitator, controls	Configured to product and process requirements
Temperature range, heating rate, power	Confirm during engineering review

Applications and purchasing questions

Typical applications include detergent concentrates, cleaning liquids, and other compatible food or liquid-processing batches. For food-contact use, specify applicable material and finish requirements; do not assume a detergent configuration is automatically suitable for food production.

Can the machine handle a viscous formula? It may, but viscosity, temperature, batch volume, and desired blend time determine the drive and impeller. What should be included in a quote request? Send the formula or ingredient compatibility notes, target batch volume, viscosity range, operating temperatures, heating time, power supply, cleaning method, and required connections. These details let our engineers recommend a practical vessel size and configuration before fabrication.
