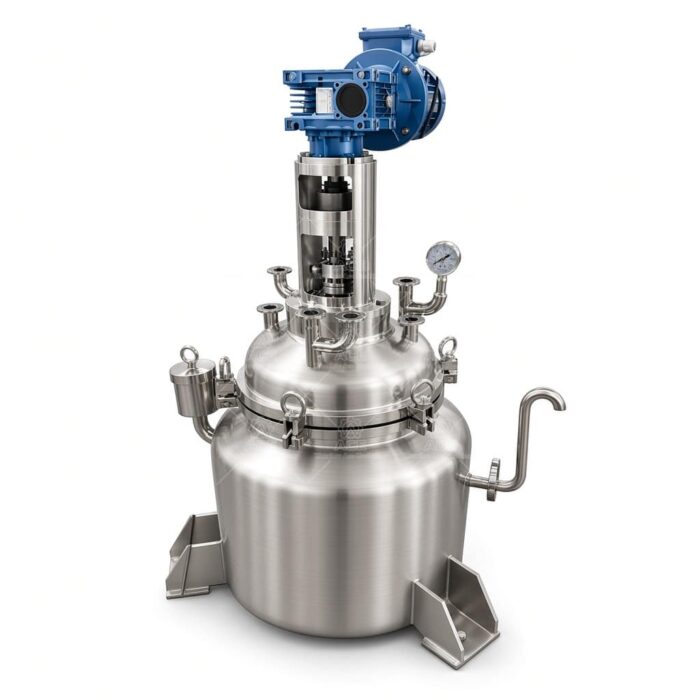

Custom Polished Stainless Steel Mixing Reactor with Gearbox & Jacket for Silicone Sealant - Image 2

Custom Polished Stainless Steel Mixing Reactor with Gearbox & Jacket for Silicone Sealant

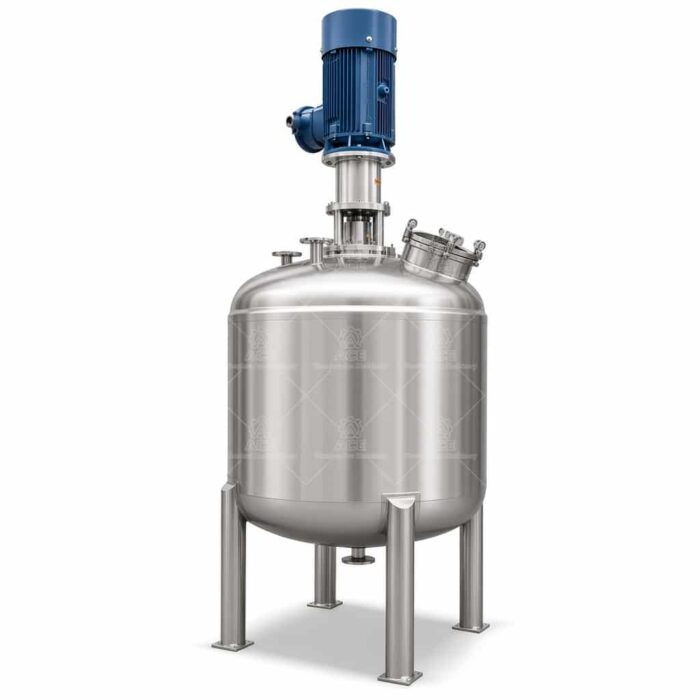

Custom Polished Stainless Steel Mixing Reactor with Gearbox & Jacket for Silicone Sealant - Image 3

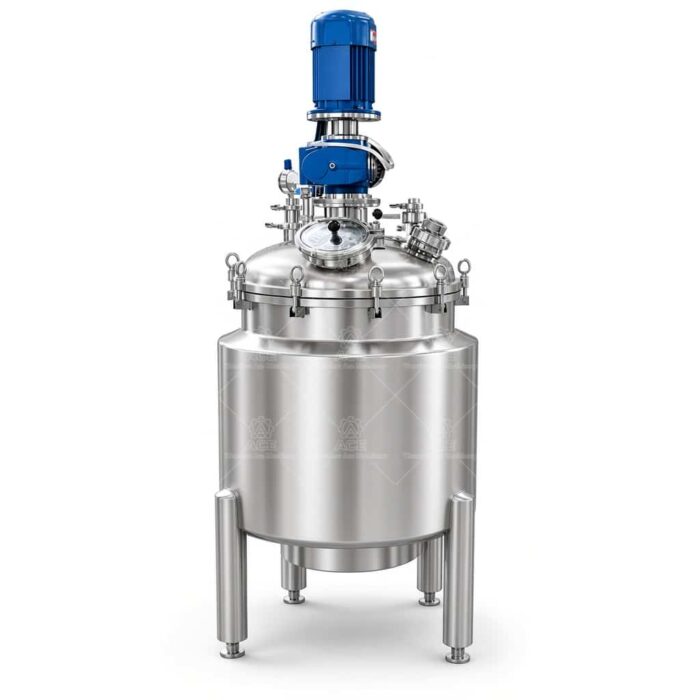

Custom Polished Stainless Steel Mixing Reactor with Gearbox & Jacket for Silicone Sealant - Image 4

Custom Polished Stainless Steel Mixing Reactor with Gearbox & Jacket for Silicone Sealant

Custom-built stainless steel mixing reactor with gearbox drive and heating/cooling jacket. Designed for silicone sealant and high-viscosity compounding. Available in 304 or 316L with polished surfaces and pressure-rated construction.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,239.81 through $3,978.81

Ask For A Quotation

Guaranteed Safe Checkout

This jacketed mixing reactor is built for silicone sealant production lines that demand consistent heat transfer and uniform dispersion. We fabricate the vessel from 304 or 316L stainless steel, with the choice depending on your formula\’s acidity and chloride content. The inner shell wall thickness is determined by your working pressure and vessel diameter, so we do not apply a one-size-fits-all spec.

The gearbox-driven agitator delivers steady torque at low speeds, which is what you need when viscosity climbs past 100,000 cPs. A polished inner surface—down to Ra 0.4 µm if required—cuts cleaning time between batches and reduces material buildup on the wall. The jacket is designed for either steam heating or cooling water circulation. We calculate the heat transfer area based on your batch size and the exothermic or endothermic nature of your reaction.

Manufacturing Notes

All welds are full penetration and ground flush on the product contact side. We pressure test every vessel before shipping. The mechanical seal is selected based on your solvent type and whether you run vacuum or positive pressure. If you process under vacuum, we reinforce the shell and head thickness accordingly. Explosion-proof motors are available for solvent-based formulations, but you need to specify the hazardous area classification.

Typical Applications

Silicone sealant and adhesive compounding
High-viscosity pastes and mastics
Caulking compounds and roofing sealants
Two-component resin mixing systems

Technical Specifications

Parameter	Available Range
Capacity	500 L – 20,000 L
Material	SS304 / SS316L
Inner Shell Thickness	Per pressure & diameter calculation
Heating	Steam / thermal oil / electric
Cooling	Jacket water / glycol circulation
Working Pressure	Atmospheric / vacuum / up to 1.0 MPa
Design Temperature	0°C – 180°C
Agitator	Anchor / helical ribbon / paddle with gearbox
Seal	Mechanical seal or stuffing box
Surface Finish	Ra 0.4 – 1.6 µm internal, brushed external

FAQ

Q: Can this reactor handle abrasive fillers like fumed silica?
Yes, but we recommend a hardened shaft and impeller surface. Standard stainless steel will wear over time with continuous abrasive mixing.

Q: What is the minimum batch size for accurate temperature control?
For a 3,000 L vessel, we suggest a minimum working volume of about 40%. Below that, the jacket heat transfer becomes less efficient.

Q: Do you provide installation support?
We supply detailed drawings and can arrange on-site commissioning for overseas projects. The cost depends on the location and duration.

Selection Checklist for Buyers

Before requesting a quote, define these points clearly:

Exact material name and chemical concentration
Batch volume and working volume
Maximum operating temperature and pressure
Viscosity range and solid content
Required mixing outcome—emulsification, dissolution, or suspension
Cleaning method and any GMP or CE compliance needs

Send us your process parameters including material properties, batch capacity, operating temperature, pressure requirements, and agitation speed range. Our engineers will respond with a configuration recommendation and a factory-gate quote within two working days.
