Batch High Shear Mixer Pneumatic Lifting Movable Homogenizer Emulsifier
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,433.86 through $3,959.31
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch High Shear Mixer for Multi-Vessel Production

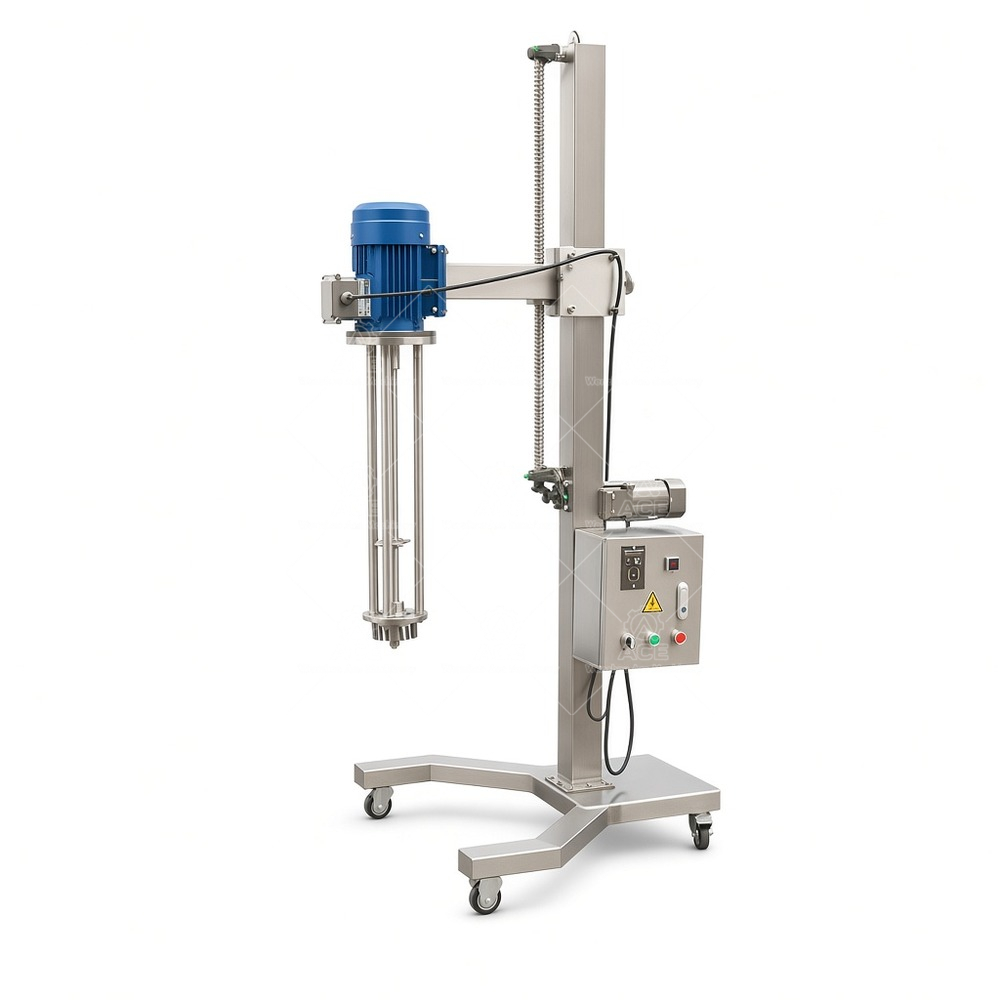

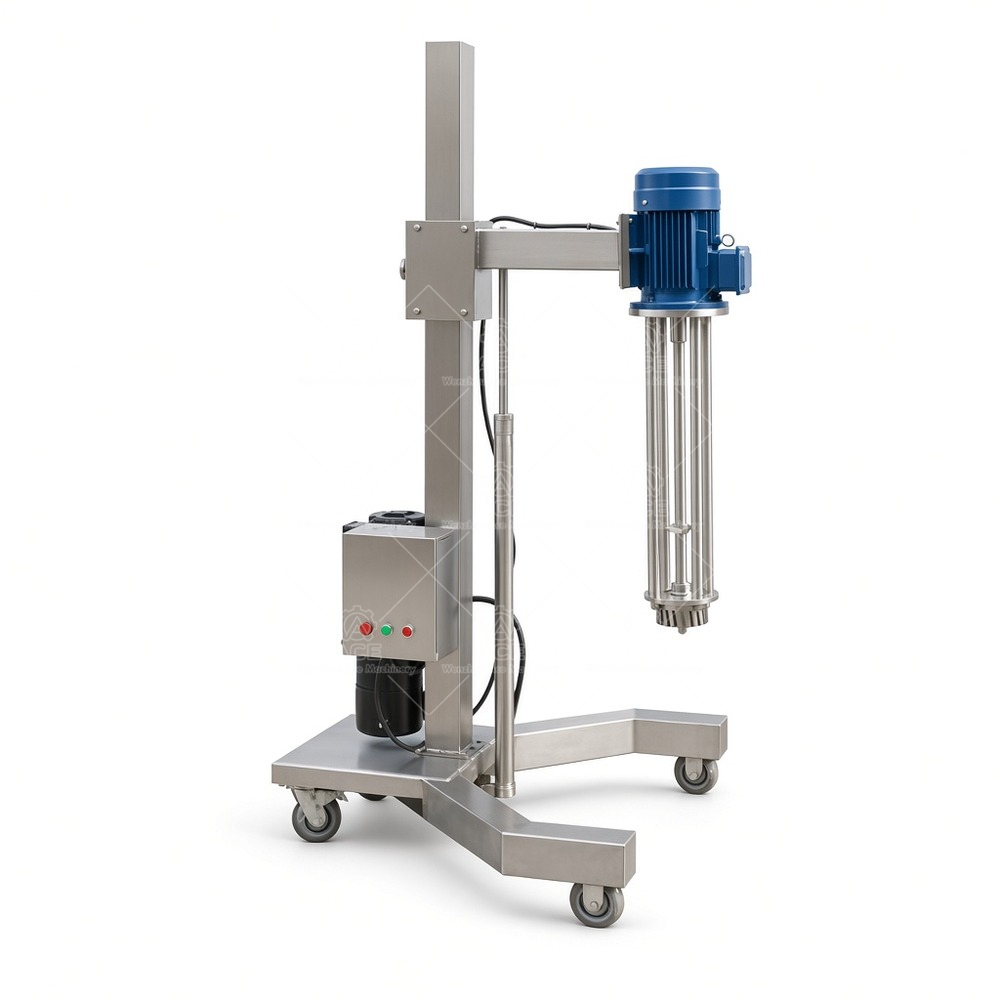

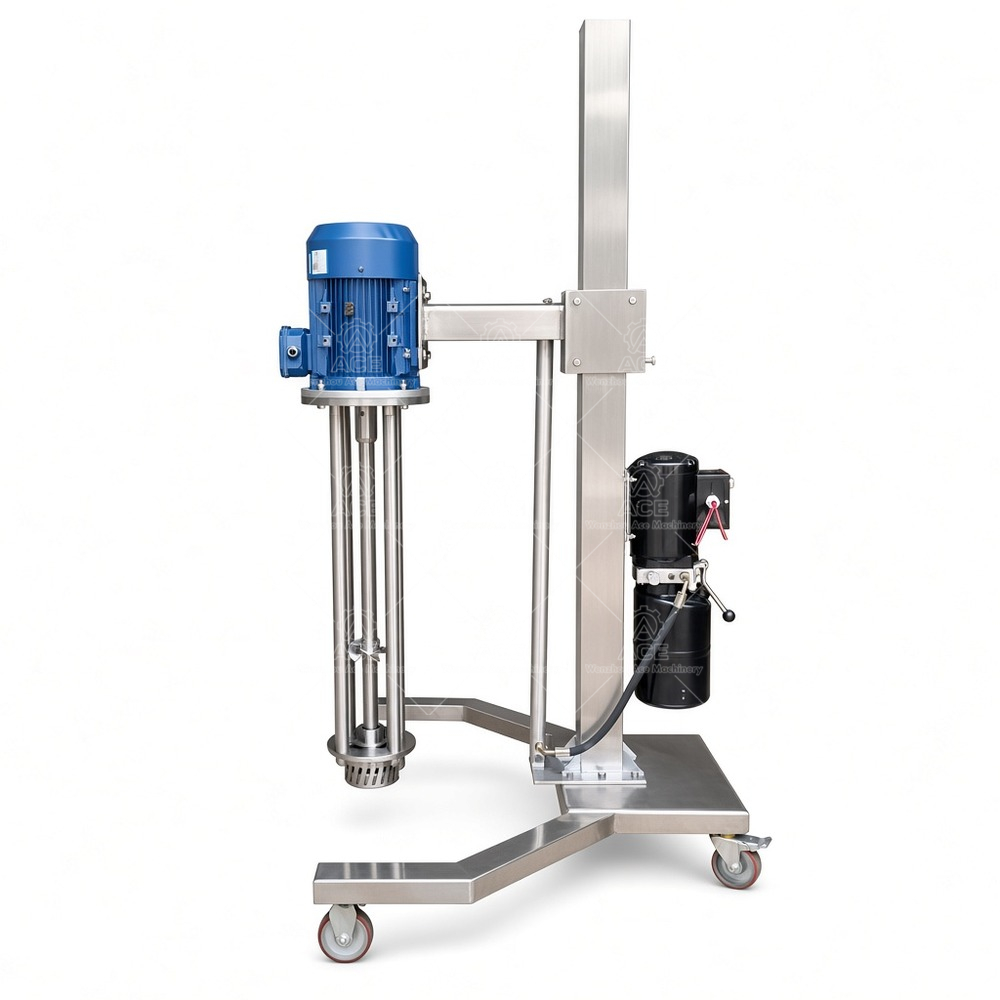

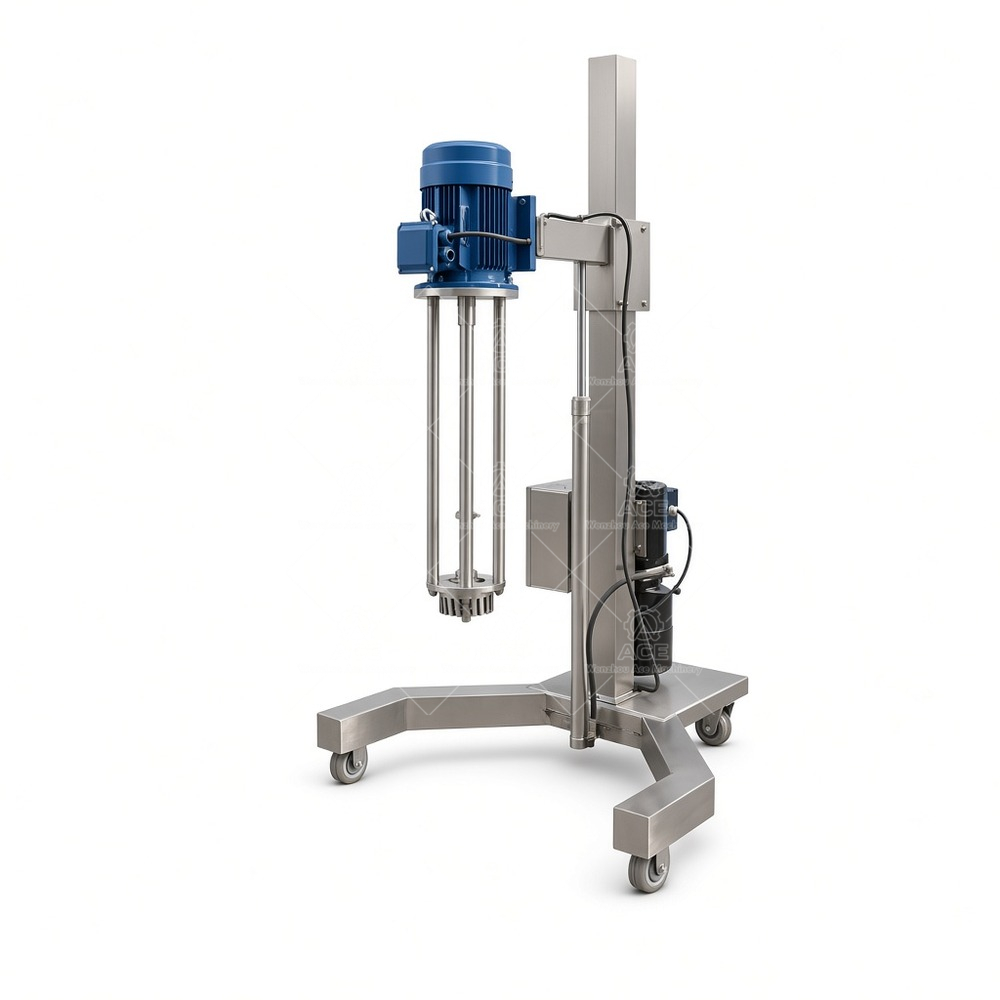

This mobile batch high shear mixer suits plants moving one unit across several vessels. The pneumatic lifting column raises and lowers the head; casters allow movement between processing areas when floor layout, hose routing, and vessel clearance permit. We build it as an industrial high shear mixer with head and wetted parts selected around the product.
Motor power runs from 1.5 to 11 kW depending on viscosity, batch size, and task. Optional VFD control gives 0 to 3000 rpm; usable range depends on motor, head, and load. Electrical configuration is confirmed before build: 220 to 480 V, with frequency and phase matched to the market. A variable speed high shear mixer helps with loaded starts and formula changes; it does not replace correct head selection.
Mixing Functions and Build
The unit handles high shear, dispersion, emulsification, and powder incorporation. For powder dispersion, we check how the powder wets out, whether it floats, and how the vessel creates flow. For emulsification, head style and shaft speed matter as much as motor power. Wetted stainless steel parts and seals are specified to the product. Ace Mixer builds configurable mixing equipment, so motor, voltage, controls, head, and mounting details can match the process.
Applications
Food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare formulations, chemical processing, paints and coatings, powder dispersion, and liquid-liquid emulsification. Suitable head, materials, and operating parameters depend on viscosity, ingredients, and process requirements. We do not quote a single maximum batch capacity or guaranteed cycle time without reviewing the vessel and formula.
Selection Notes
Define batch size and vessel dimensions first. List viscosity range, solids loading, temperature, and shear sensitivity. Confirm voltage, frequency, and phase. Decide if a mobile high shear mixer is practical: casters help, but floor condition, doorway width, and hose management matter. A common mistake is sizing the motor for water-like liquids, then running creams or slurries that demand more torque at startup.
FAQ
Can it move between vessels? Yes, but check vessel height, rim clearance, and lifting stroke.
How do I choose the head? Share product, viscosity, batch size, and desired action for a recommendation.
What wetted materials are available? Stainless steel and contact materials are specified per application.
What do you need for a quote? Batch size, material characteristics, target rpm, required motor power, and local electrical specifications. Send those details for a recommendation and quote.
Ace Mixer builds mobile batch high shear mixers with pneumatic lifting, optional VFD speed control, 1.5–11 kW motors, and 220–480 V electrical options. The unit combines high shear, dispersion, emulsification, and powder incorporation for food, cosmetic, pharmaceutical, chemical, and coating batches. Wetted stainless steel parts and mixing head configuration are selected around product viscosity, ingredients, batch vessel, and process requirements.
