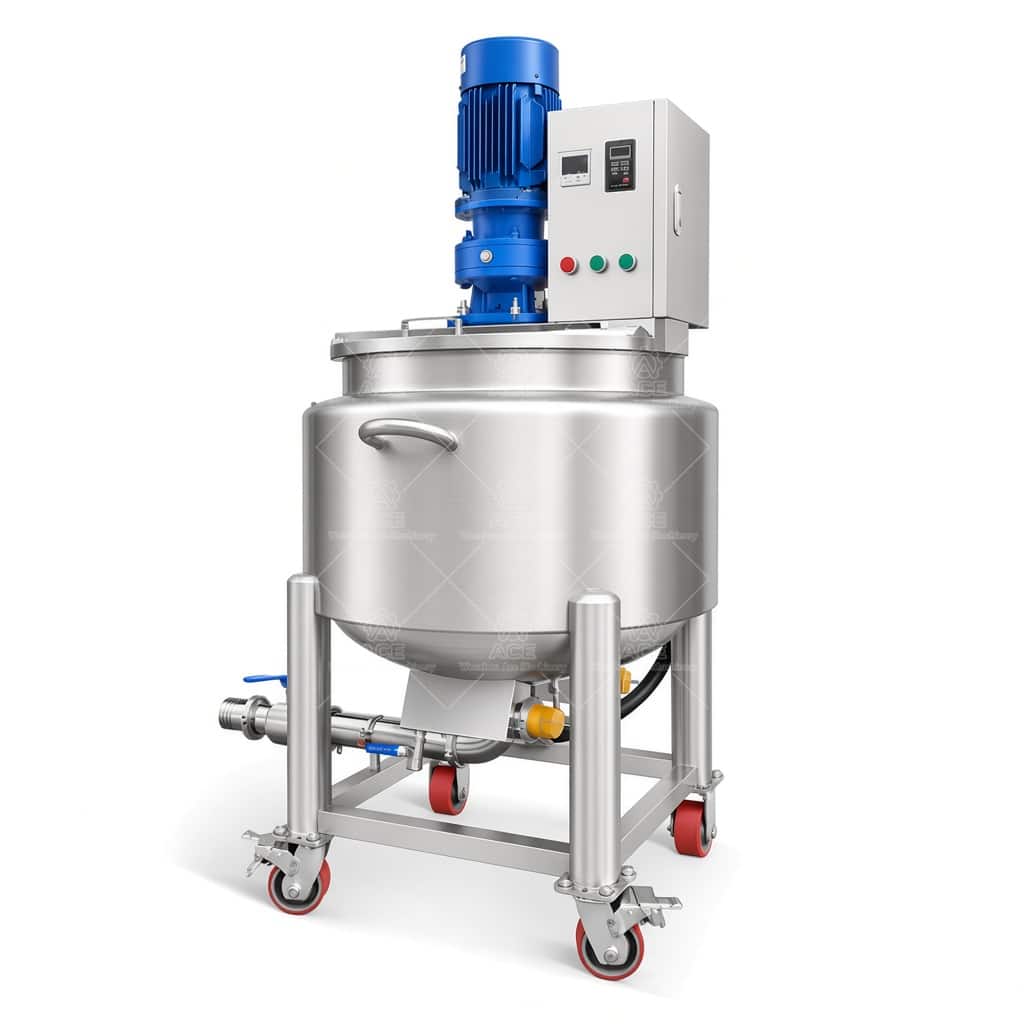

500L High Shear Homogenizing Mixer for Shampoo, Soap & Mud Masks

A 500-liter-class high shear mixer for producing shampoo, liquid soap, laundry detergent, and clay-based mud masks. Configuration depends on batch size, viscosity, powder loading, desired dispersion, and cleaning requirements. Review vessel material, agitator type, drive sizing, heating or cooling needs, and usable volume with the manufacturer before requesting a quotation.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $9,565.32 through $10,564.90

Ask For A Quotation

Guaranteed Safe Checkout

Process-focused mixing for viscous personal-care and cleaning products

This 500-liter-class high shear mixer is intended for batches that need both bulk circulation and intensive dispersion, such as shampoo, liquid soap, laundry detergent, and clay-based mud masks. The high-shear head can help wet out powders and reduce visible agglomerates; a separate low-speed agitator may be specified to move material through the vessel and limit settling. The right arrangement depends on viscosity, powder loading, batch sequence, and the texture required. A high-shear mixer alone may not provide adequate circulation in a large or highly viscous batch.

Construction and configuration

We select product-contact materials to match the formula, cleaning chemicals, and applicable plant requirements. 304 or 316L stainless steel may be considered; chloride exposure, acids, and cleaning practices can affect that choice. Weld profile, internal polishing, and surface finish should be agreed against the cleaning method and product sensitivity. Seals and shaft arrangements also require review for temperature, chemical compatibility, vacuum service, and cleaning access. Hygienic fabrication details matter: hard-to-drain areas and rough welds can retain product between batches.

Motor and gearbox sizing depend on working viscosity, impeller diameter, speed, and whether the process requires continuous operation or intermittent high-shear cycles. We can assess anchor, paddle, or other low-speed agitators alongside the rotor-stator head. Heating or cooling is a configuration decision, not an assumed standard feature. Options may include a jacket or another specified heat-transfer arrangement; control method and temperature limits should follow the batch recipe and utility conditions.

Indicative specification

Item	Current information
Nominal capacity	500 L, as stated in the product title; usable volume to be confirmed
Product-contact material	304 or 316L stainless steel, subject to process review
High-shear drive, agitator, speed	Selected to match viscosity and dispersion duty
Heating, controls, finish, discharge	Specify to process and site requirements

FAQ

Can it make mud masks and detergent? Potentially, but their solids, viscosity, and shear needs differ. Share representative formulas or process targets before finalizing the head and agitator.

Is 500 L the working batch size? Not necessarily. Vessel geometry, headspace, foam, and mixing behavior determine safe usable volume.

What should we send for a quotation? Provide batch size, ingredient order, viscosity or a sample, powder and solids content, target temperature, cleaning method, utilities, discharge needs, and installation constraints. These details let our engineers recommend a configuration rather than size the machine from capacity alone.
