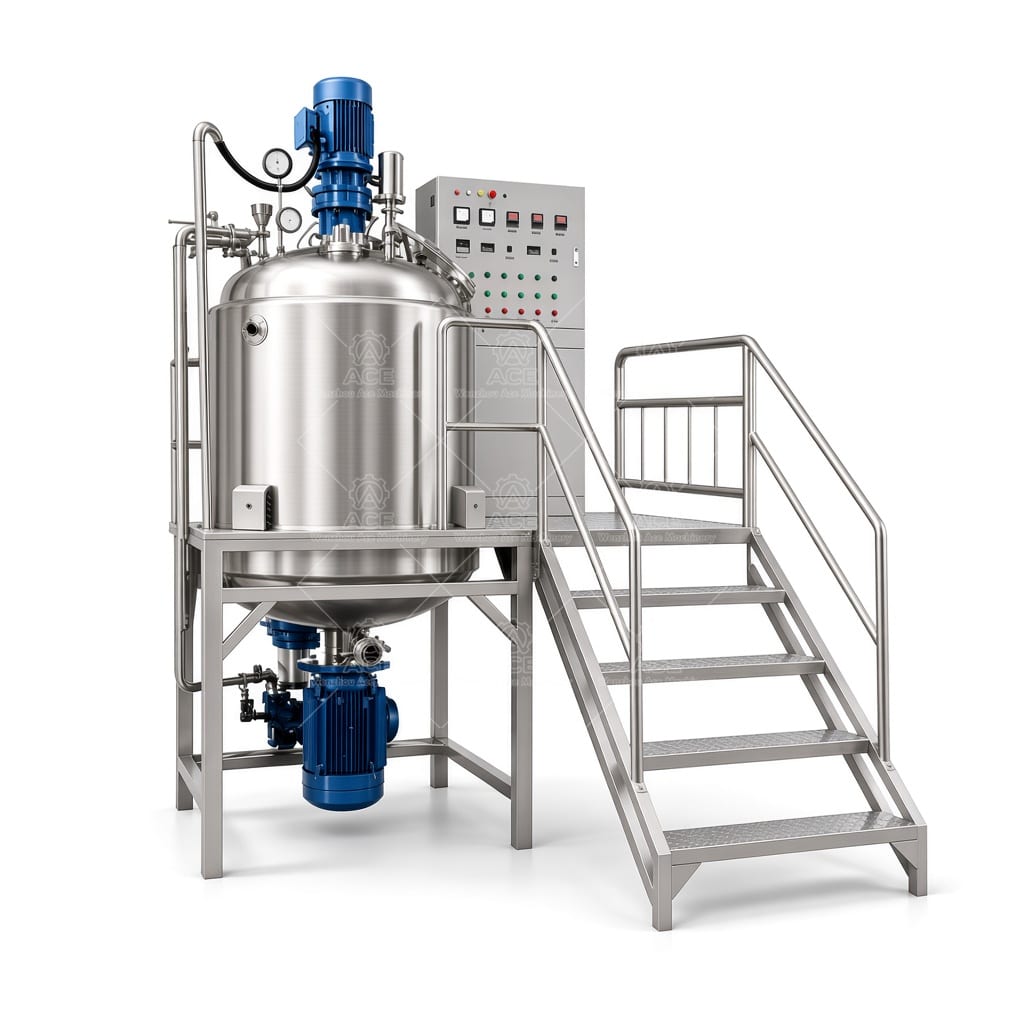

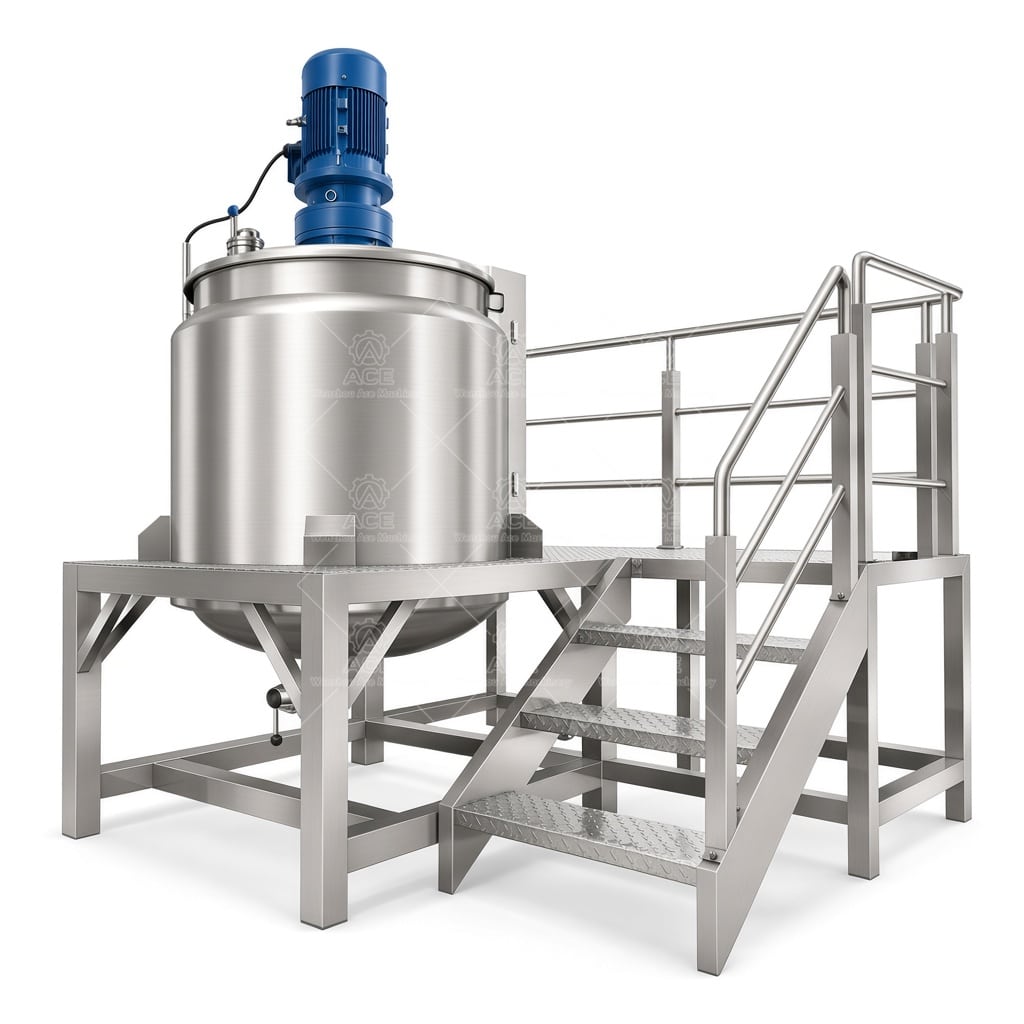

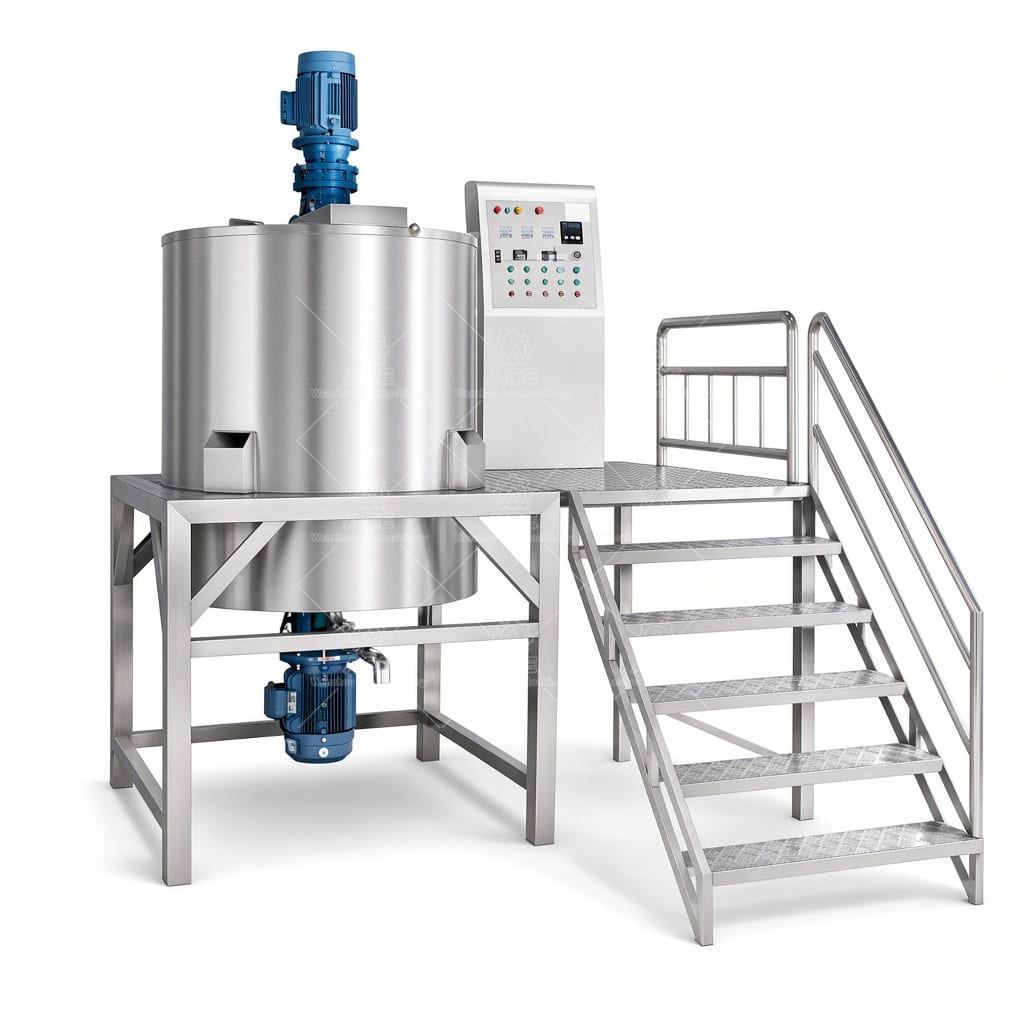

316L Stainless Steel Liftable High Shear Mixer for Soap and Cosmetics

Process-focused mixing for soap and cosmetic batches

This liftable high-shear mixer is intended for production processes that need controlled agitation and intensive dispersion, such as soap milling or cosmetic emulsion preparation. The lifting arrangement provides access to the vessel for charging, inspection, and cleaning; the required lift travel and mounting layout depend on the barrel dimensions and plant clearances. We configure the working head and agitator around the material and batch sequence rather than assuming one setup will suit every formula.

High shear can help disperse powders, break down agglomerates, and form finer mixtures, but it does not replace every bulk-mixing step. Viscosity, solids loading, air sensitivity, and the order of ingredient addition affect the result. A separate anchor or sweep agitator may be appropriate for viscous batches, while the rotor-stator or other homogenizing head handles local shear. The drive and impeller selection should account for batch volume, desired processing time, and heat generated by shear.

Materials and fabrication

SUS316L is commonly specified for wetted components where corrosion resistance and cleanability matter. Final suitability depends on the chemicals, salts, cleaning agents, temperature, and exposure time; 316L is not universally resistant to every formulation. Welds on product-contact surfaces should be finished to the agreed sanitary standard, with crevices and difficult-to-clean joints minimized. Surface finish, passivation requirements, seals, and shaft details should be confirmed against the cleaning method and product-contact requirements.

The DC motor and lift system are part of a configured assembly, not a complete specification by themselves. We need the required speed range, available power supply, operating duty, and whether speed control is needed. Seal selection depends on product compatibility, temperature, pressure, and cleaning practice. Heating or cooling can be considered if the process requires it; the method and controls depend on the vessel construction, target temperature, and heat-up or cool-down time.

Configuration information

Applications and purchasing questions

Potential applications include soap bases, creams, lotions, and other cosmetic mixtures. Before requesting a quotation, provide batch size, ingredient list or compatibility notes, viscosity range, target temperature, cleaning method, power supply, and available floor height. Also clarify whether the vessel is supplied with the mixer and whether the unit must fit an existing barrel.

FAQ

Can it process high-viscosity soap? That depends on the viscosity across the batch and whether bulk circulation is required; share the formulation behavior and batch size for agitator sizing.

Is heating included? No heating specification is stated. If heating is needed, identify the medium, temperature range, and required heating time.

How should the correct configuration be selected? Start with the process sequence and vessel geometry, then confirm shear needs, motor duty, lift clearance, wetted materials, and cleaning requirements.
